Product Detailed Parameters

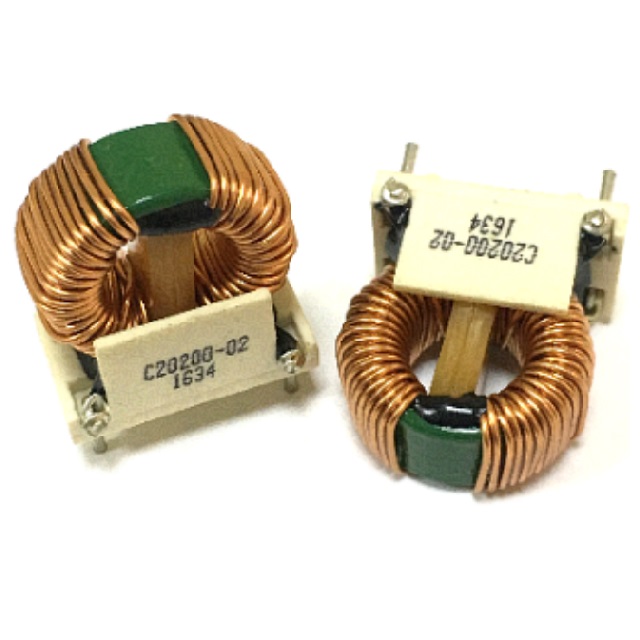

- Description：CMC 36MH 2.9A 2LN THROUGH HOLE
- Series：C20200
- Mfr：ITG Electronics, Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.9A
- DC Resistance (DCR) (Max)：300mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.650" L x 0.811" W (41.90mm x 20.60mm)
- Height (Max)：1.673" (42.50mm)
- Package / Case：Radial, Vertical - 4 Leads
- Inductance @ Frequency：36 mH @ 1 kHz
- Impedance @ Frequency：-
Download product information
Overview
The ITG Electronics C20200-17 is a through-hole common mode choke designed for EMI suppression. It features two lines with an inductance of 36 mH at 1 kHz and a maximum current rating of 2.9 A. The component has a maximum DC resistance (DCR) of 300 mOhm and operates within a temperature range of -55°C to 105°C.
Feature Summary
- Provides effective electromagnetic interference suppression across a wide frequency spectrum
- Supports high current capacity for power line applications
- Utilizes through-hole mounting for secure PCB integration
Applications
- Power supply input filtering
- EMI noise reduction in electronic circuits
- Signal integrity enhancement in data lines
Procurement Notes
Verify the specific part number suffix against official ITG Electronics documentation to ensure correct electrical specifications. Confirm package type and pin configuration match the target design requirements before ordering. Check for RoHS compliance status if required by project standards.
Selection Notes
Select this component when high inductance is required for low-frequency noise attenuation. Ensure the operating current does not exceed 2.9 A to prevent saturation. Consider the physical size constraints for through-hole placement on the printed circuit board.
Part Context
This component belongs to the C20200 series of common mode chokes from ITG Electronics. The series offers various inductance and current ratings to suit different filtering needs. These components are typically used in power electronics and signal processing applications requiring robust noise suppression.
Replacement Considerations
Direct substitutes may include other ITG Electronics C20200 series variants with similar inductance and current ratings. Verify compatibility with existing footprint and electrical parameters before substitution.
