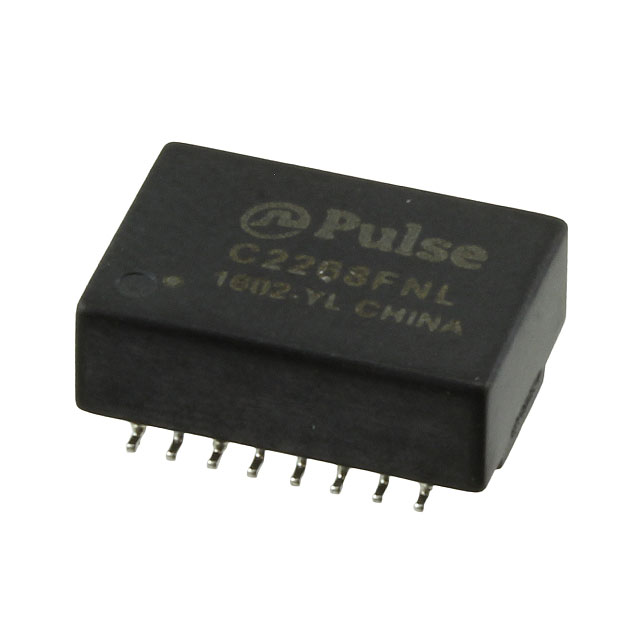

C2268FNL

Description：PULSE XFMR 1:1 7.5UH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:80ff0b8314b1 Category: Pulse Transformers Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1:1 7.5UH
Series：-
Mfr：Pulse Electronics
Package：Tube
Transformer Type：-
Inductance：7.5µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:01
Mounting Type：Surface Mount
Size / Dimension：0.498" L x 0.350" W (12.65mm x 8.89mm)
Height - Seated (Max)：0.200" (5.08mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

C2268FNL

Overview

The C2268FNL is a surface-mount pulse transformer manufactured by Pulse Electronics. It features a 1:1 turns ratio and an inductance of 7.5µH. The component has a maximum DC resistance of 200 mOhms. Physical dimensions are 12.70mm x 6.99mm with a maximum height of 5.08mm. It operates within a temperature range of 0°C to 70°C and complies with RoHS3 standards.

Feature Summary

Surface mount construction for automated assembly
1:1 impedance ratio for signal isolation
RoHS3 compliant manufacturing

Applications

RF signal transmission circuits
Audio signal processing interfaces
General purpose signal coupling

Procurement Notes

Verify the specific suffix against official documentation, as distributor listings may contain conflicting status information regarding availability or discontinuation. Confirm that the requested unit matches the exact electrical specifications required for the design, particularly the 7.5µH inductance and physical footprint constraints.

Selection Notes

Select this component when a compact SMT solution is required for 1:1 isolated signal transfer. Ensure the operating environment stays within the specified 0°C to 70°C range. Verify that the 200 mOhms DC resistance meets the circuit's loss requirements.

Part Context

This part belongs to the Pulse Electronics audio and signal transformer family. It is designed for high-frequency signal integrity applications requiring galvanic isolation between circuit stages while maintaining signal fidelity through precise magnetic coupling.

Replacement Considerations

Cross-reference with other 7.5µH 1:1 SMT pulse transformers from Pulse Electronics or compatible manufacturers. Ensure pinout compatibility and identical physical dimensions for direct replacement without PCB redesign.
