C2E-16.000-8-3030-R

Crystals Overview

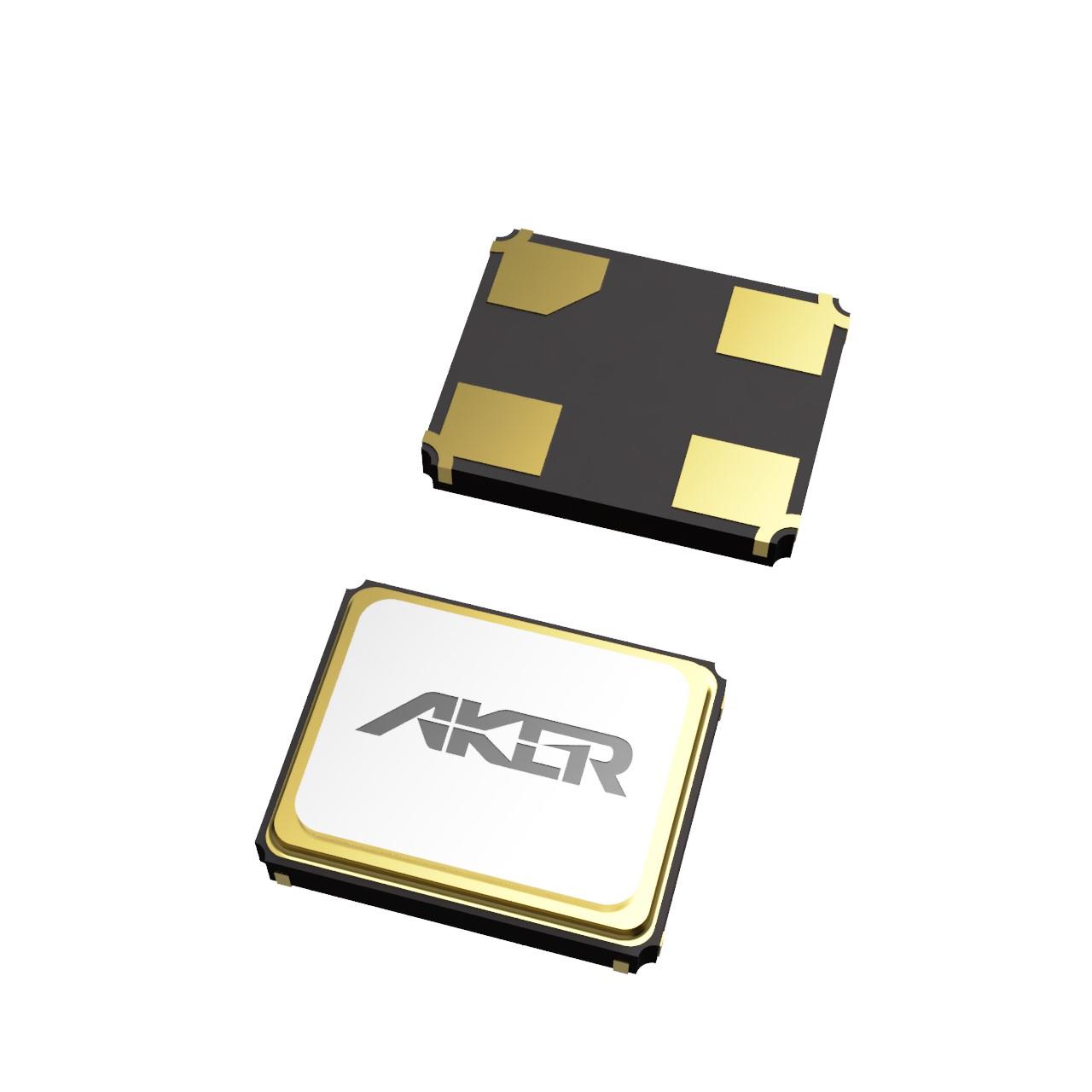

The C2E-16.000-8-3030-R is a surface-mount quartz crystal oscillator manufactured by Aker Technology Corp. It operates at a standard frequency of 16 MHz with a frequency tolerance and stability of ±30 ppm. The component features an 8 pF load capacitance and an equivalent series resistance (ESR) of 90 Ohms. Designed for robust performance, it supports an operating temperature range from -40°C to +85°C. The device utilizes a 4-SMD, no lead package configuration, suitable for automated assembly processes in electronic circuits requiring precise timing.

Crystals Feature Summary

• Surface-mount design compatible with automated pick-and-place manufacturing
• Stable frequency generation with ±30 ppm tolerance for precision timing applications
• Wide operational temperature range supporting industrial environments

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific suffix 'R' against the manufacturer's official datasheet to confirm reel packaging specifications and tape dimensions. Ensure the load capacitance requirement of the target circuit matches the 8 pF specification. Confirm RoHS compliance status if restricted substance regulations apply to the final product assembly.

Crystals Selection Notes

Select this component when a 16 MHz reference is required in a compact surface-mount footprint. The 8 pF load capacitance dictates compatibility with specific oscillator circuit designs. Consider the 90 Ohm ESR value for drive level sensitivity analysis. Evaluate thermal requirements against the -40°C to +85°C range for the intended application environment.

Crystals Part Context

This part belongs to the C2E series of surface-mount crystals from Aker Technology Corp. The series offers various frequency options within the same physical package. The C2E designation indicates a specific size and pin configuration distinct from other series like C3E or HC-49 through-hole variants.

Crystals Replacement Considerations

Direct substitutes include C2E-16.000-8-3030-X-R and C2E-16.000-8-3030-CT. Verify that alternative manufacturers offer identical 8 pF load capacitance and 90 Ohm ESR values to ensure circuit stability without modification.
