C3227TDWN3S1-GRBC0112-2T
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LED RGB 4PLCC SMD
- Series：-
- Mfr：Everlight Electronics Co Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：-
- Lens Color：-
- Lens Transparency：-
- Millicandela Rating：392mcd Red, 1255mcd Green, 315mcd Blue
- Lens Style：Round with Flat Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：5V Red, 5V Green, 5V Blue
- Current - Test：1mA Red, 1mA Green, 1mA Blue
- Viewing Angle：120°
- Mounting Type：Surface Mount
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：4-SMD, J-Lead
- Supplier Device Package：4-PLCC
- Size / Dimension：3.20mm L x 2.70mm W
- Height (Max)：1.80mm
Download product information
Overview

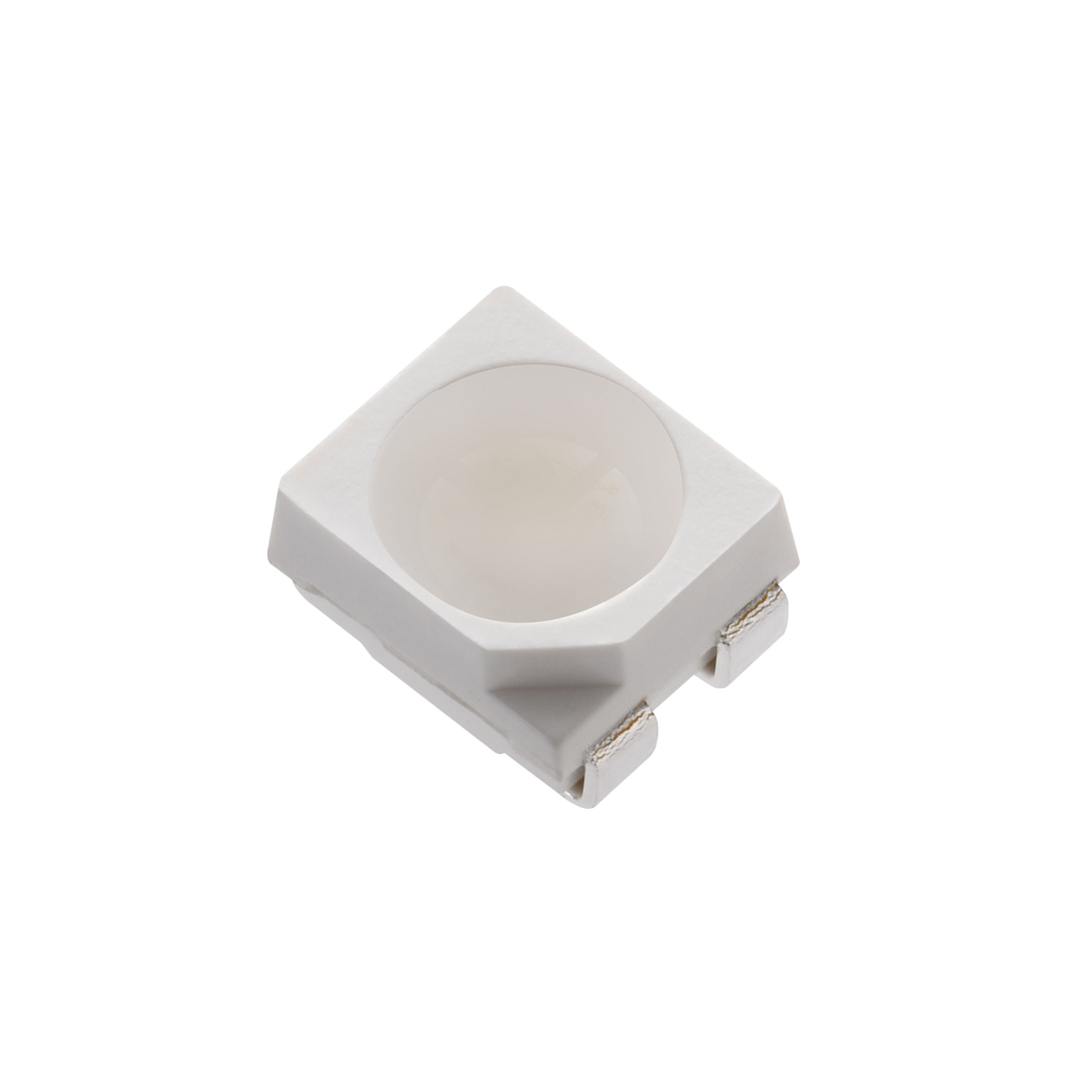

The C3227TDWN3S1-GRBC0112-2T is a surface-mount RGB LED indicator from Everlight Electronics. It integrates red, green, and blue emitters within a PLCC-4 package measuring 3.2mm by 2.7mm with a height of 1.8mm. The component features a circular lens with a flat top design and offers a wide viewing angle of 120 degrees. Electrical specifications include forward voltages of 5V for each channel and drive currents of 1mA per color. Peak wavelengths are specified at 617.5nm to 629.5nm for red, 519.5nm to 531.5nm for green, and 464.5nm to 476.5nm for blue.
Feature Summary
- Integrates red, green, and blue light-emitting diodes into a single compact surface-mount package.
- Features a circular lens with a flat top design for distinct visual indication.
- Provides a wide 120-degree viewing angle suitable for various panel mounting orientations.
Applications
- Status indicators on electronic control panels
- Visual signaling in telecommunications equipment
- Multi-color status display in consumer electronics
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct wavelength and binning requirements. Confirm that the PLCC-4 package dimensions align with the designated PCB footprint. Check for any recent product change notifications regarding material or process updates. Ensure storage conditions meet moisture sensitivity level requirements before reflow soldering.
Selection Notes
Select this component when a compact multi-color solution is required for space-constrained designs. The integrated nature of the package reduces board space compared to discrete LEDs. Consider the 1mA drive current requirement for low-power applications. Verify thermal management needs based on the total power dissipation of all three channels operating simultaneously.
Part Context
This part belongs to Everlight's SMD LED indicator series, designed for surface-mount technology assembly. The PLCC-4 package is a standard form factor compatible with automated placement equipment. It represents a trend toward miniaturization in optical components while maintaining high visibility through wide-angle emission characteristics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for verified alternatives.
