Product Detailed Parameters

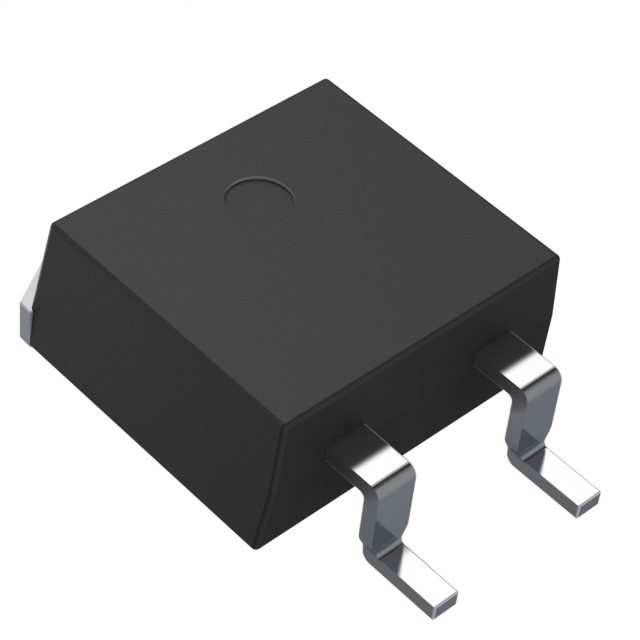

- Description：DIODE SIL CARB 600V 19A TO263-2
- Series：Z-Rec®
- Mfr：Wolfspeed, Inc.
- Package：Tube
- Technology：SiC (Silicon Carbide) Schottky
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：19A
- Voltage - Forward (Vf) (Max) @ If：1.7 V @ 6 A
- Speed：No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr)：0 ns
- Current - Reverse Leakage @ Vr：50 µA @ 600 V
- Capacitance @ Vr, F：295pF @ 0V, 1MHz
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263-2
- Operating Temperature - Junction：-55°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview
The Wolfspeed C3D06060G is a 600 V Silicon Carbide Schottky diode housed in a TO-263-2 package. It features a maximum continuous forward current of 19 A at 25 °C and a peak repetitive reverse voltage of 600 V. The device exhibits a typical forward voltage of 1.5 V at 6 A and 25 °C, with a maximum reverse current of 33 µA at 600 V and 25 °C. Operating junction temperatures range from -55 °C to +175 °C, and the thermal resistance from junction to case is 1.65 °C/W.
Feature Summary
- Zero reverse recovery charge for fast switching
- Positive temperature coefficient on forward voltage
- High-frequency operation capability
Applications
- Switch mode power supplies (SMPS)
- Boost diodes in PFC or DC/DC stages
- Free wheeling diodes in inverter stages
- AC/DC converters
Procurement Notes
Verify the specific part number suffix against official manufacturer documentation to confirm package type and qualification status. Ensure that ordering details match the required thermal and electrical specifications for your design. Cross-reference datasheet revision dates to confirm the most current technical parameters are being utilized.
Selection Notes
Select this component when designing circuits requiring high-efficiency rectification with minimal switching losses. Consider the positive temperature coefficient for potential parallel operation without thermal runaway. Evaluate the thermal management requirements based on the specified junction-to-case thermal resistance and operating temperature limits.
Part Context
This discrete SiC Schottky diode belongs to Wolfspeed's portfolio of third-generation silicon carbide devices. It is designed to replace traditional bipolar rectifiers in high-power applications, offering superior performance characteristics compared to standard silicon counterparts.
Replacement Considerations
Consult official substitution guides for compatible alternatives within the same product family. Verify pinout compatibility and thermal interface requirements before replacing existing components in established designs.
