C3E-16.000-12-2050-A-X1-R

Crystals Overview

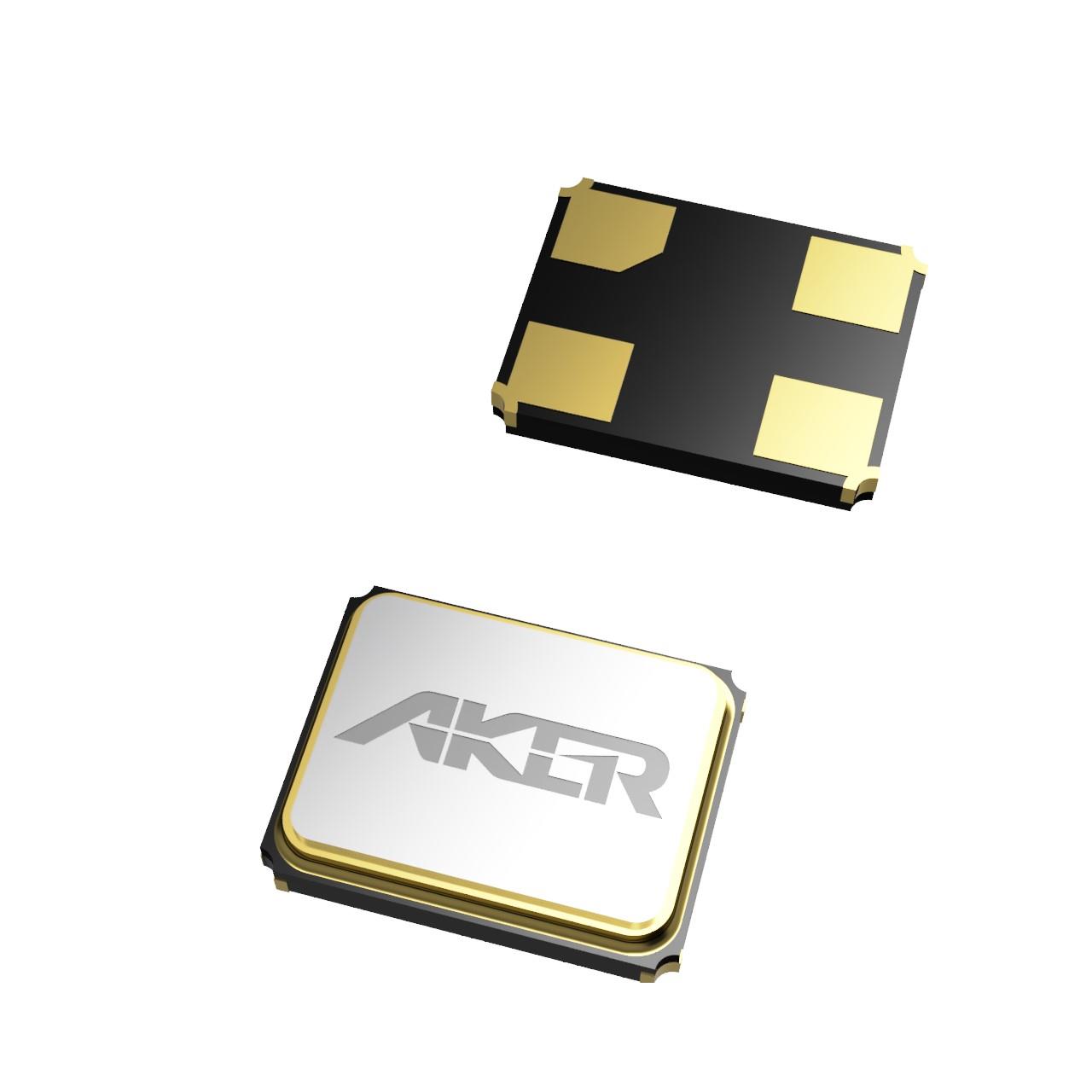

The C3E-16.000-12-2050-A-X1-R is a surface-mount quartz crystal oscillator manufactured by Aker Technology Corp. It operates at a standard frequency of 16 MHz with a frequency tolerance of ±20 ppm and stability of ±50 ppm. The component features a 12 pF load capacitance and a maximum series resistance of 60 Ohms. It utilizes a 4-pin SMD package with dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height. The device supports an operating temperature range from -40°C to +85°C and complies with RoHS standards.

Crystals Feature Summary

• Surface mount design for automated assembly processes
• AEC-Q200 qualified for automotive reliability requirements
• RoHS compliant construction for environmental safety

Crystals Applications

• Automotive electronic systems requiring certified components
• General purpose clock signal generation
• Embedded microcontroller timing circuits

Crystals Procurement Notes

Verify the specific tolerance and stability ratings against the official datasheet, as distributor listings may vary between ±20 ppm and ±30 ppm specifications. Confirm the package type is Tape & Reel if high-volume production is intended. Ensure the manufacturer is identified as Aker Technology Corp to avoid confusion with generic equivalents. Check for active status confirmation prior to ordering.

Crystals Selection Notes

Select this component when a 16 MHz reference is required for automotive or industrial applications demanding AEC-Q200 certification. The 3225 package size offers a balance between footprint efficiency and thermal performance. Consider the 12 pF load capacitance requirement to ensure circuit compatibility. Evaluate the 60 Ohm series resistance limit against the driving circuit capabilities to prevent overdriving the crystal.

Crystals Part Context

This part belongs to the C3E series of surface-mount crystals from Aker Technology Corp. The series is designed for compact electronics where space is limited but reliability is critical. The C3E designation indicates a specific form factor and electrical characteristic set tailored for modern PCB layouts. It serves as a fundamental timing element in digital logic and communication interfaces.

Crystals Replacement Considerations

Direct substitutes must match the 16 MHz frequency, 3225 package, and AEC-Q200 qualification. Verify equivalent load capacitance and series resistance values. Generic 3225 crystals without automotive certification are not suitable replacements for regulated automotive applications.
