C4516SDWN3S1-RGBC0120-2H

Overview

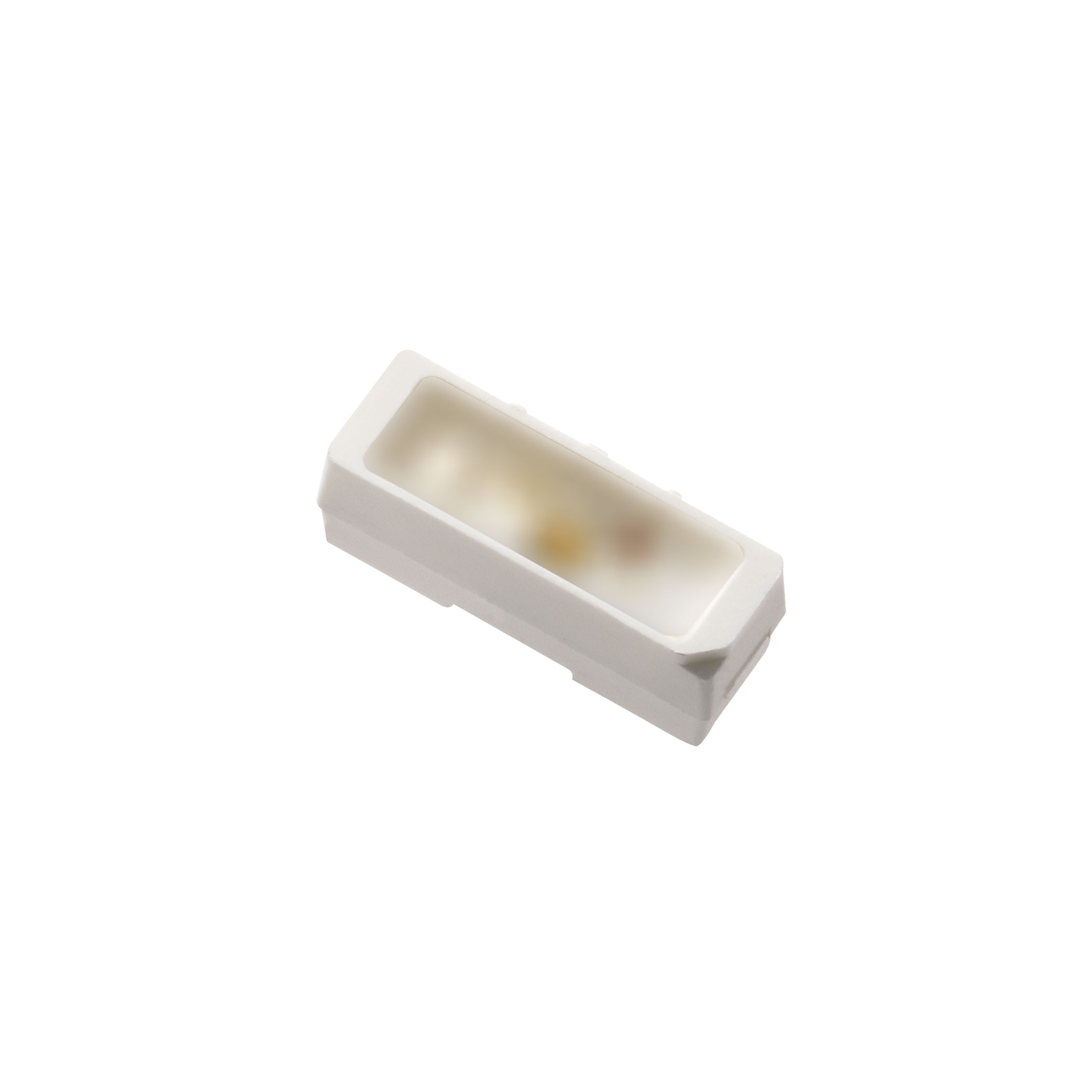

The C4516SDWN3S1-RGBC0120-2H is a surface-mount RGB LED component manufactured by Everlight Electronics Co Ltd. It integrates Red, Green, and Blue chips within a single compact package to enable multi-color output. The device features a square lens shape with diffused transparency for wide-angle light distribution. Key electrical parameters include a forward current of 20 mA per color channel and a maximum power rating of 250 mW. The unit operates within a temperature range of -40°C to +85°C and utilizes standard SMD/SMT mounting techniques for automated assembly processes.

Feature Summary

• Integrates Red, Green, and Blue semiconductor elements into a unified surface-mount package
• Features a square lens design with diffused optics for broad viewing angles
• Supports infrared reflow soldering methods for automated manufacturing integration

Applications

• Decorative lighting systems requiring dynamic color mixing
• Status indicators in consumer electronics devices
• Backlighting applications for displays and control panels
• Smart home appliance interface illumination

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct binning and optical specifications. Confirm RoHS compliance status and lead times directly with authorized distributors prior to placing orders. Check for any regional availability restrictions or alternative part numbers if this specific variant is discontinued.

Selection Notes

Select this component when space-constrained designs require full RGB functionality from a single footprint. Ensure the driving circuitry can handle the specified forward current limits without exceeding thermal constraints. Verify that the required viewing angle and color mixing characteristics align with the optical requirements of the target application enclosure.

Part Context

This part belongs to Everlight's family of multi-color surface-mount LEDs designed for high-density PCB layouts. It shares common packaging dimensions and pin configurations with other variants in the series, allowing for flexible design-in options while maintaining consistent mechanical mounting standards across different color combinations.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify compatibility of forward voltage drops and luminous intensity ratings before swapping components to maintain system performance consistency.
