C4SMF-BJS-CR0U0452

Overview

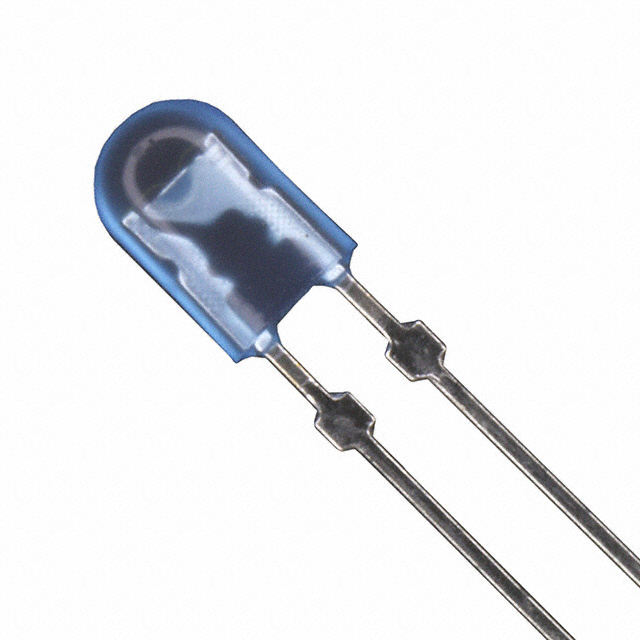

The C4SMF-BJS-CR0U0452 is a single-color blue LED from the Screen Master series, designed for through-hole mounting in a T-1 3/4 (5 mm) oval package. It features a wavelength of 470 nm and a tinted lens with dimensions of 5.1 mm x 3.7 mm. The component operates at a forward current of 20 mA with a forward voltage of 3.4 V, delivering an optical intensity of 1100 mcd and a power rating of 140 mW.

Feature Summary

• Oval lens geometry provides specific beam distribution characteristics suitable for signage applications.
• Through-hole construction ensures mechanical stability within standard PCB layouts.

Applications

• LED billboards
• Outdoor digital displays
• Signage indicators

Procurement Notes

Verify component authenticity against official Cree LED documentation due to end-of-life status. Confirm that the specific ordering suffix matches required optical and electrical tolerances. Check for valid replacement sources as availability is restricted. Ensure compliance with RoHS standards as indicated in technical specifications.

Selection Notes

Select this component when high-intensity blue illumination is required for large-format display systems. The oval package shape offers distinct visual coverage compared to round LEDs. Evaluate thermal management requirements based on the 140 mW power rating and 20 mA operating current for reliable long-term performance.

Part Context

This part belongs to the Screen Master family, which focuses on application-optimized solutions for high-brightness display environments. The C4SMF variant utilizes a 5 mm through-hole form factor, distinguishing it from surface-mount alternatives within the broader Cree LED portfolio.

Replacement Considerations

C4SMF-BJE-CR0U0451

FAQ

What is the primary lens color of this component?

The lens color is specified as blue.

Does this LED utilize a surface-mount or through-hole package?

It utilizes a through-hole installation style.
