C4SMF-GJS-CV0Y0792

Overview

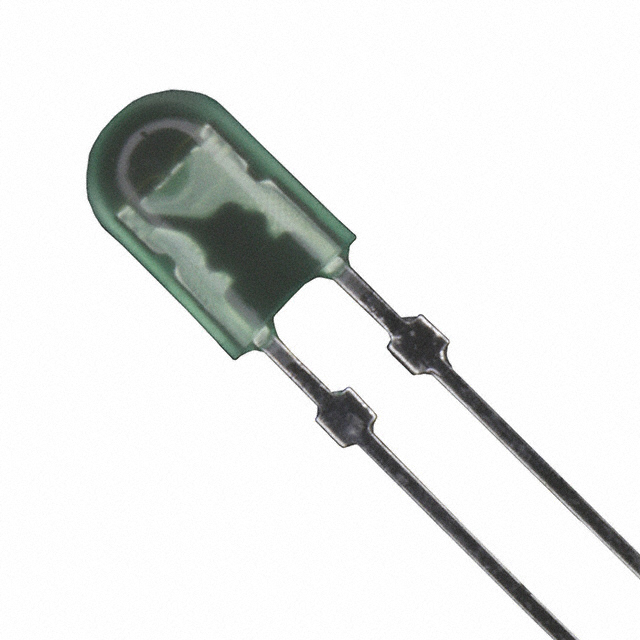

The C4SMF-GJS-CV0Y0792 is a single-color green light-emitting diode manufactured by Cree LED. It utilizes a through-hole mounting style within a 5mm (T-1 3/4) package configuration. The component features two pins and an oval-shaped lens with a green tint. Key electrical parameters include a forward voltage of 4 V and a main wavelength of 535 nm. The optical output provides a luminous intensity of 8.2 cd.

Feature Summary

• Features an oval lens design for specific beam distribution characteristics.
• Constructed with a green-tinted lens to enhance color purity.
• Designed for standard through-hole PCB assembly processes.

Applications

• Indicator lighting in electronic control panels
• Status indication in consumer appliances
• Visual signaling in industrial instrumentation

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with design specifications. Confirm that the 5mm T-1 3/4 package dimensions align with the target PCB footprint. Check for any recent product change notifications or lifecycle status updates from Cree LED prior to finalizing procurement plans.

Selection Notes

Select this component when a high-intensity green indicator is required for through-hole applications. The 535 nm wavelength offers distinct visibility compared to standard yellow-green LEDs. Ensure the circuit design accommodates the 4 V forward voltage drop and the 8.2 cd luminous intensity requirements for the intended visual range.

Part Context

This component belongs to the C5SMF-GJS series, which focuses on high-brightness visible spectrum emitters. The series is characterized by consistent chromaticity and reliable performance in standard indicator roles. It represents a specific variant within Cree LED's portfolio of discrete semiconductor light sources.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Verify mechanical pin spacing and electrical ratings before considering alternative manufacturers' components.
