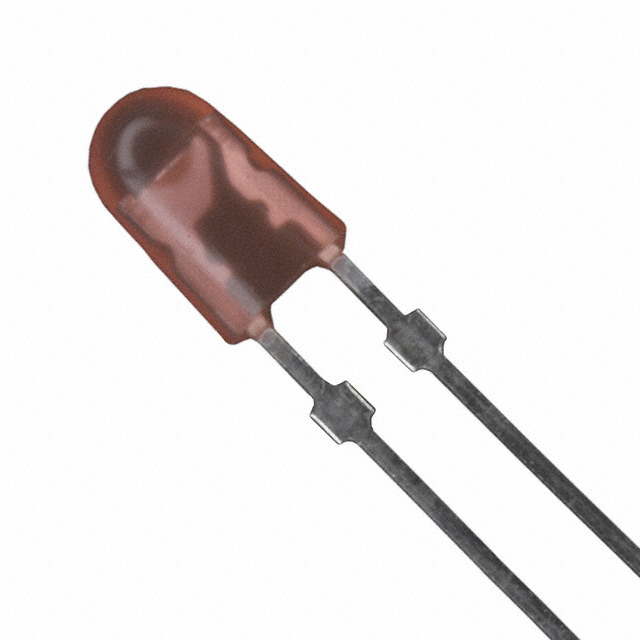

C4SMF-RJS-CT0W0BB1

Description：LED RED CLEAR 4MM OVAL T/H
Series：Screen Master®
Mfr：Cree LED
Package：Bulk

SKU:ae629f1fd960 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED CLEAR 4MM OVAL T/H
Series：Screen Master®
Mfr：Cree LED
Package：Bulk
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Clear
Millicandela Rating：2640mcd
Lens Style：Oval with Domed Top
Lens Size：4.20mm x 3.10mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：-
Mounting Type：Through Hole
Wavelength - Dominant：621nm
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：4mm Oval
Size / Dimension：-
Height (Max)：10.35mm

Download product information

C4SMF-RJS-CT0W0BB1

Overview

The C4SMF-RJS-CT0W0BB1 is a single-color red LED from the Screen Master family, manufactured by Cree LED. It utilizes a 5 mm (T-1 3/4) through-hole package with two pins and an oval lens shape. The component emits light at a primary wavelength of 624 nm. Key electrical parameters include a forward voltage of 2.6 V and a forward current rating of 20 mA. The optical intensity is specified at 2.6 cd. The lens color is red, and it operates within standard temperature ranges typical for this product line.

Feature Summary

Features a water-clear or tinted red oval lens designed for high visibility applications.
Constructed in a robust 5 mm T-1 3/4 through-hole package for reliable mounting.
Optimized for signage and display uses requiring specific red wavelength output.

Applications

LED signage and billboards
Status indicators in electronic equipment
Display panel backlighting

Procurement Notes

Verify the exact suffix CT0W0BB1 against official Cree LED documentation to confirm lens clarity and binning specifications. Ensure compatibility with existing PCB footprints for 5 mm T-1 3/4 packages. Check current lifecycle status as distribution availability may vary for specific suffixes.

Selection Notes

Select this component when a 624 nm red wavelength is required for visual signaling. Compare forward voltage and intensity requirements against circuit design limits. Consider the oval lens geometry for directional light distribution needs in signage applications.

Part Context

This part belongs to the Screen Master series, which focuses on application-optimized LEDs for displays and signage. The C4SMF series specifically denotes 5 mm oval LEDs. Cree LED provides these components for industrial and commercial lighting solutions.

Replacement Considerations

Check for direct substitutes within the C4SMF-RJS family with different suffixes for varying intensities or lens types. Verify pinout and mechanical dimensions match before replacing with generic 5 mm red LEDs.
