C503B-ABN-CX0Y0341

Overview

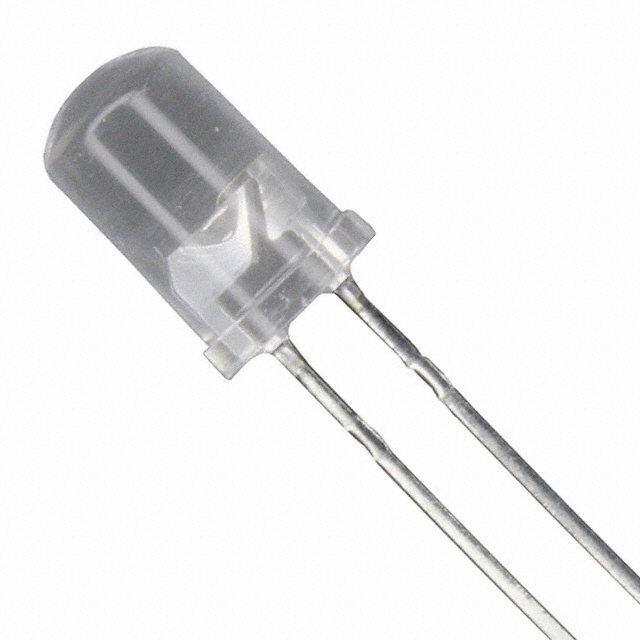

The C503B-ABN-CX0Y0341 is a single-color amber LED from the Cree series, housed in a 5 mm (T-1 3/4) through-hole package. It features a round lens with a clear surface and emits light at a peak wavelength of 591 nm. The component operates with a forward voltage of 2.1 V and a maximum forward current of 20 mA. It delivers a luminous intensity of 6000 mcd with a viewing angle of 30 degrees. The device has a power rating of 130 mW and functions within a temperature range of -40 °C to +100 °C.

Feature Summary

• Provides superior light output for excellent readability in sunlight
• Ensures dependable performance across a wide operating temperature range
• Features a round lens design with a clear surface

Applications

• Sunlight-readable indicator applications
• General purpose electronic status indication
• Through-hole PCB assembly projects

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current availability and lifecycle status. Ensure that the selected component matches the required electrical parameters, including forward voltage and current ratings, for your specific circuit design. Check for any RoHS compliance requirements relevant to your region. Confirm packaging details such as bulk quantities before placing orders.

Selection Notes

Select this component when high visibility in bright environments is required due to its superior light output characteristics. Consider the 5 mm T-1 3/4 package size for standard through-hole mounting constraints. Evaluate the 20 mA forward current requirement against your power budget. The wide operating temperature range supports use in diverse environmental conditions.

Part Context

This component belongs to the C503B series of single-color LEDs manufactured by Cree LED. The series is known for providing reliable illumination solutions suitable for various industrial and consumer electronics applications. The specific model utilizes an amber emission color optimized for visibility.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
