C503B-WAN-CABBB151

Overview

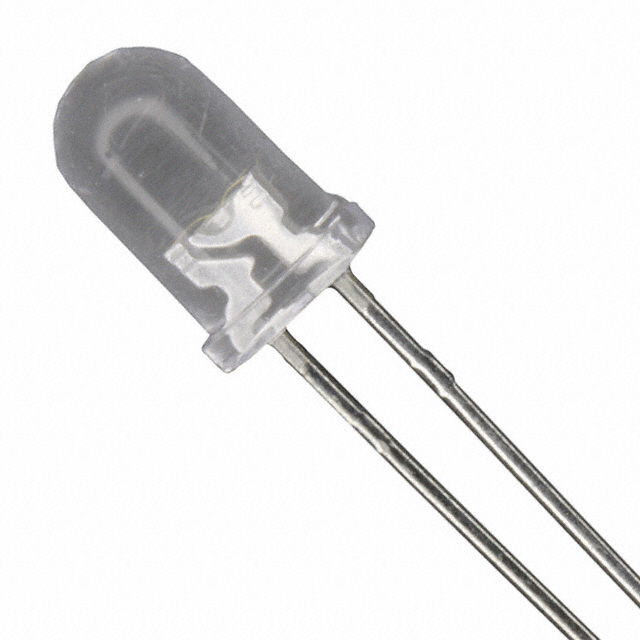

The C503B-WAN-CABBB151 is a single-color LED from the Cree LED series, emitting cool white light at a color temperature of 9000K. It utilizes a 5 mm (T-1 3/4) round package with a domed top lens and clear colorless material. The component features two pins for through-hole mounting and operates with a typical forward voltage of 3.2V at a test current of 20mA. It delivers a luminous intensity ranging from 14,400 to 23,500 mcd with a viewing angle of 15 degrees. The maximum power dissipation is rated at 130mW, supporting an operating temperature range from -40°C to +100°C.

Feature Summary

• Emits bright, crisp cool white light with a bluish tint at 9000K
• Provides superior light output via a 5mm round domed lens design
• Ensures consistent illumination through a clear, colorless lens

Applications

• General indicator lighting
• Status indication in electronic equipment
• Instrument panel displays

Procurement Notes

Verify the specific bin code suffix CABBB151 against official datasheets to confirm exact luminous intensity ranges and color coordinates. Ensure compatibility with standard through-hole PCB layouts for the 5mm T-1 3/4 package. Confirm RoHS compliance status for your region's regulatory requirements before finalizing procurement.

Selection Notes

Select this component when high-intensity cool white indication is required in a standard 5mm form factor. The 15-degree viewing angle suits applications needing focused visibility. Consider the 3.2V forward voltage drop for circuit design. This part is suitable for general commercial electronics where specific amber or red options are not needed.

Part Context

This model belongs to the C503B-WAN family of 5mm round white LEDs manufactured by Cree LED. The series offers various intensity bins and lens configurations. The C503B-WAN-CABBB151 specifically targets applications requiring higher brightness levels within the cool white spectrum, distinguishing it from lower intensity variants in the same product line.

Replacement Considerations

Check for direct substitutes within the C503B-WAN series that match the 9000K color temperature and 15-degree beam angle. Verify pinout and mechanical dimensions for equivalent 5mm through-hole packages from other manufacturers if supply constraints arise.
