C503B-WAN-CCACB231

Overview

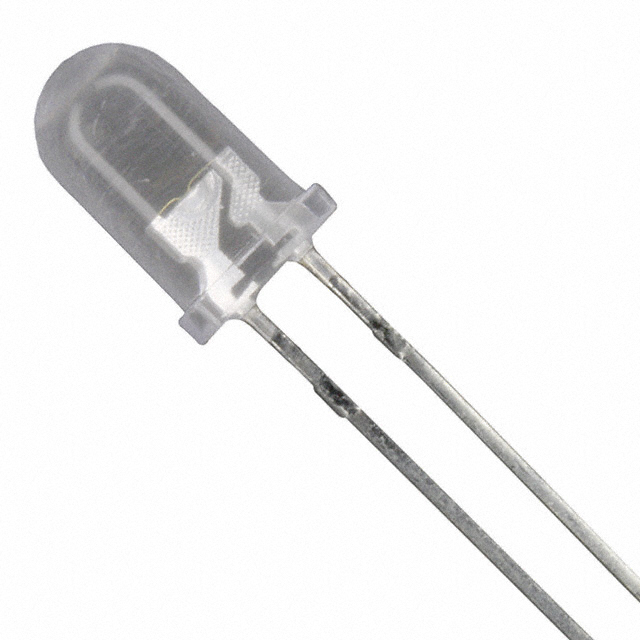

The C503B-WAN-CCACB231 is a 5 mm round through-hole LED from Cree LED, emitting cool white light with a dominant wavelength of 9000K. It features a clear domed lens and operates at a forward voltage of approximately 4V. The component delivers high luminous intensity within the 14400 to 32900 mcd range for its color bin. Designed for robust performance, it offers superior readability in sunlight and stable output over time. The device complies with RoHS standards and utilizes advanced optical grade epoxy for resistance to high temperature and moisture.

Feature Summary

• Provides superior light output for excellent readability in sunlight
• Ensures extremely stable light output over long periods of time
• Constructed with advanced optical grade epoxy for high temperature and moisture resistance

Applications

• Torch lighting
• Light strip illumination
• Channel letter signage
• Retail display lighting

Procurement Notes

Verify the specific suffix CCACB231 against official Cree documentation to confirm exact color bin (9000K) and intensity bin specifications. Ensure compatibility with standard 5mm PCB mounting requirements. Confirm that the bulk packaging format aligns with assembly line needs. Cross-reference the manufacturer part number to avoid confusion with similar C503B series variants that may differ in lens shape or electrical ratings.

Selection Notes

Select this component when high-intensity cool white illumination is required for outdoor or high-visibility applications. The 5mm T-1 3/4 package allows for easy integration into existing through-hole designs. Consider the 15-degree viewing angle for directional lighting needs. Verify thermal management requirements as the device dissipates power during operation. Ensure the operating temperature range meets the environmental conditions of the final product.

Part Context

This part belongs to the Cree C503B series of 5mm round LEDs, known for their reliability and brightness. The series includes various colors and intensities, with the WAN variant specifically targeting cool white applications. These LEDs are engineered for general lighting and indicator purposes where consistent performance is critical. The series maintains a compact form factor suitable for space-constrained designs while delivering high luminous efficacy.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
