C503B-WAN-CCADA152

Overview

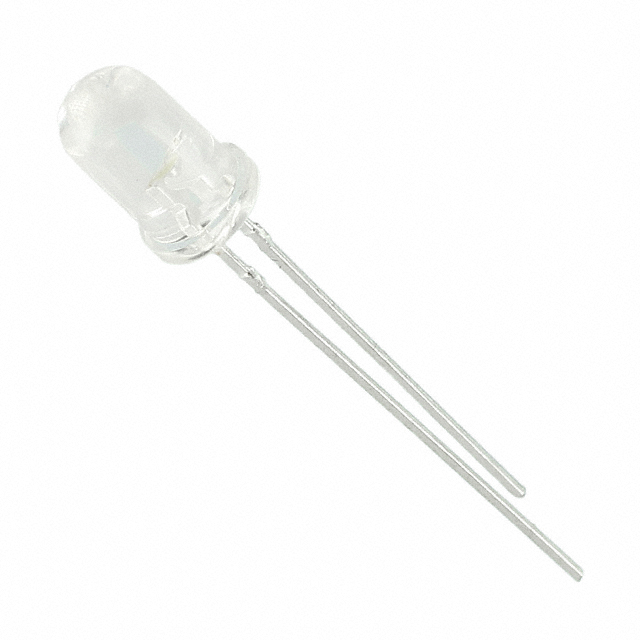

The C503B-WAN-CCADA152 is a 5mm round through-hole LED manufactured by Cree LED, designed for high-intensity illumination. It emits Cool White light with a typical color temperature of 9000K and a minimum of 4600K. The component features a luminous intensity range of 14400 to 32900 mcd and a narrow viewing angle of 15 degrees. Constructed with optical grade epoxy, it offers superior resistance to high temperatures and moisture. The device operates with a forward current of 20mA and a forward voltage of approximately 4V, ensuring stable performance in demanding lighting applications.

Feature Summary

• Utilizes advanced optical grade epoxy for enhanced durability against heat and moisture
• Provides extremely stable light output over extended operational periods
• Delivers superior light output for excellent readability in direct sunlight

Applications

• Torch
• Light Strip
• Channel Letter
• Retail Display Lighting

Procurement Notes

Verify the specific suffix CCADA152 against official Cree datasheets to confirm exact binning parameters, as standard C503B-WAN specifications may vary. Ensure compliance with RoHS and lead-free requirements during sourcing. Cross-reference manufacturer part numbers directly to avoid substitution errors due to minor suffix differences affecting optical characteristics or packaging.

Selection Notes

Select this component for applications requiring high visibility in bright ambient conditions due to its narrow 15-degree beam angle. The cool white spectrum (up to 9000K) suits tasks needing high contrast. Consider the 5mm T-1 3/4 package size for compatibility with existing through-hole layouts. Evaluate thermal management needs given the high luminous intensity output.

Part Context

This part belongs to the C503B series of round LEDs from Cree LED, known for reliability in industrial and consumer lighting. The C503B family typically includes various colors and intensities, with the WAN variant specifically targeting high-brightness white light applications. It represents a legacy through-hole solution compared to modern surface-mount alternatives.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify functional equivalence carefully if considering alternative brands, particularly regarding forward voltage, luminous intensity bins, and physical dimensions.
