C503C-WAS-CBADA151

Overview

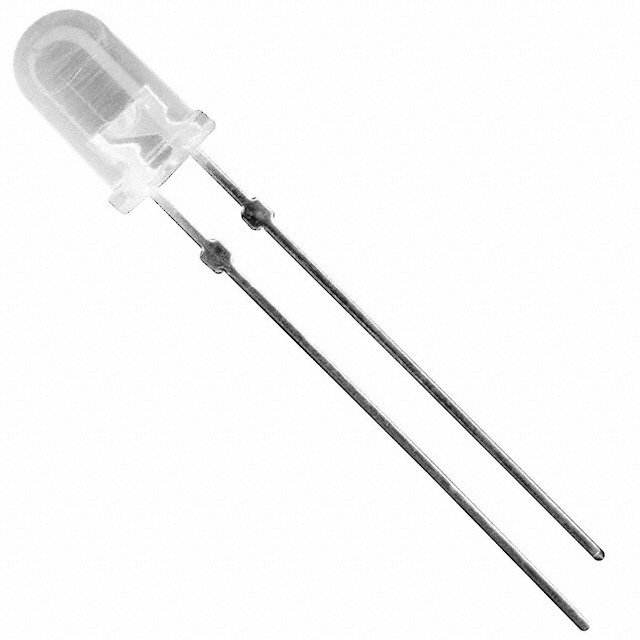

The C503C-WAS-CBADA151 is a discrete white LED from Cree LED, housed in a 5 mm (T-1 3/4) radial through-hole package. It features a round lens shape and emits cool white light with a color temperature of 9000K. The component has two pins and operates with a forward voltage of approximately 3.2V to 4V. Maximum forward current is rated at 30mA, with a maximum power dissipation of 120mW. The viewing angle is specified as 15 degrees, providing a focused beam. Luminous intensity varies by source, with values cited around 33,125 mcd or 46,100 mcd. It complies with RoHS standards.

Feature Summary

• Utilizes advanced optical-grade epoxy for superior high-temperature and moisture resistance
• Features a round lens design optimized for specific light projection quality
• Provides cool white illumination suitable for indicator applications

Applications

• General indication lighting
• Commercial downlighting components
• GU10 lamp assemblies

Procurement Notes

Verify the exact datasheet version for the C503C-WAS-CBADA151 model, as luminous intensity and forward voltage specifications may vary between different production batches or regional documentation. Confirm that the 5mm T-1 3/4 package dimensions match your PCB footprint requirements. Ensure thermal management considerations are addressed given the 120mW power dissipation limit during operation.

Selection Notes

Select this component when a focused 15-degree beam of cool white light is required in a standard 5mm through-hole form factor. Consider the 9000K color temperature for applications demanding high color purity. Compare against similar models like C503C-WAN variants if warmer color temperatures are needed. Verify compatibility with existing drive circuits regarding the 30mA current rating.

Part Context

This part belongs to the Cree LED C503C series of 5mm round LEDs. These components are designed for general indication and display applications where reliability and consistent color performance are critical. The series offers various color options and lens shapes, with the WAS suffix typically denoting white light variants. They are widely used in consumer electronics and industrial equipment.

Replacement Considerations

Publicly confirmed substitute part numbers for C503C-WAS-CBADA151 are not available in the provided reference data. Cross-referencing with other Cree 5mm white LEDs such as C503C-WAN-CBBDB151 may be necessary, but electrical and optical differences must be verified against official datasheets before substitution.
