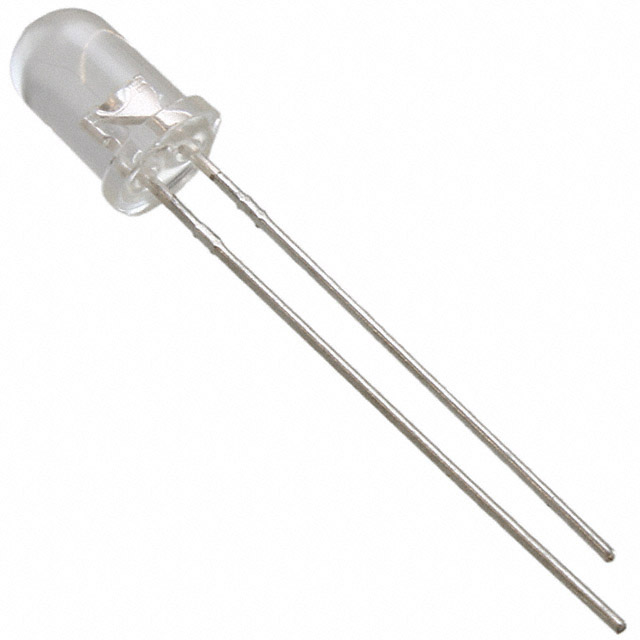

C512A-WNN-CZ0B0152

Overview

The C512A-WNN-CZ0B0152 is a through-hole white LED from the Cree LED C512A series, designed for indicator applications. It features a radial package with a 5 mm round lens and a dome shape. The component emits cool white light at a color temperature of 9000 K. Key electrical parameters include a forward voltage of 3.2 V and a forward current of 20 mA. The optical intensity is specified at 20550 mcd with a viewing angle of 25 degrees. It operates within a temperature range of -40°C to +95°C and complies with RoHS standards.

Feature Summary

• Emits high-intensity cool white light suitable for clear visibility in indicator roles
• Features a robust radial T-1 3/4 (5 mm) package with a water-clear dome lens
• Optimized for standard through-hole mounting on printed circuit boards

Applications

• Panel indicators for electronic equipment
• Status indication in control systems
• Instrumentation displays

Procurement Notes

Verify the specific suffix CZ0B0152 against official Cree LED documentation to confirm exact binning and packaging details. Ensure compatibility with existing board layouts for the 5 mm radial footprint. Confirm RoHS compliance status for the specific manufacturing lot prior to integration into regulated products.

Selection Notes

Select this component when a high-intensity cool white indicator is required in a standard through-hole form factor. The 25-degree beam angle provides focused illumination compared to wider-angle alternatives. Consider the 9000 K color temperature for applications requiring distinct blue-white visual signaling.

Part Context

This part belongs to the C512A family of low-power white LEDs from Cree LED. The series offers various color temperatures and intensities in a consistent 5 mm radial package. It is engineered for reliability in general-purpose lighting and signaling tasks where compact size and high brightness are prioritized.

Replacement Considerations

Cross-reference with other C512A variants such as C512A-WNN-CA0C0151 for potential parameter-equivalent substitutes if supply constraints exist. Verify mechanical and electrical compatibility before substituting.
