C512T-WNN-CW0Z0151

Overview

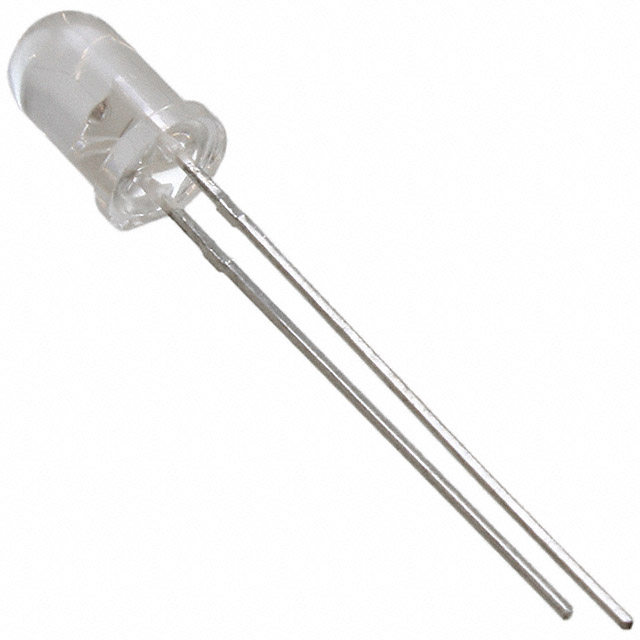

The C512T-WNN-CW0Z0151 is a through-hole LED indicator from Cree LED, featuring a cold white lens color and a standard radial package. It utilizes a 5.00mm diameter round dome lens with transparent, colorless properties. The component operates at a typical forward voltage of 3.4V under a test current of 20mA. It provides an intensity rating of 7500mcd with a narrow viewing angle of 25 degrees. The maximum height is 8.80mm, designed for reliable mounting in electronic assemblies.

Feature Summary

• Cold white light emission with high-intensity output
• Transparent colorless dome lens design
• Standard radial through-hole construction

Applications

• General-purpose electronic equipment status indication
• Control panel power and function signaling
• Consumer appliance operational feedback

Procurement Notes

Verify the specific suffix CW0Z0151 against official Cree LED documentation to confirm binning and optical characteristics. Ensure compatibility with existing PCB footprints and thermal management requirements. Cross-reference datasheet parameters for forward voltage and luminous intensity before finalizing procurement orders.

Selection Notes

Select this component when a cold white indication is required with a narrow beam profile. The 25-degree viewing angle directs light precisely, suitable for applications needing focused visibility. The 3.4V forward voltage aligns with standard logic-level driving circuits, simplifying interface design without complex driver stages.

Part Context

This part belongs to the C512 series of discrete LED indicators. The series offers various lens styles and colors for general signaling needs. The C512T variant specifically denotes the radial through-hole configuration with a flat or slightly domed lens profile, distinct from surface-mount alternatives.

Replacement Considerations

C512A-WNN-CA0C0151 is documented as a parameter-equivalent substitute within the same manufacturer portfolio.
