C513A-MSS-CX0Z0511

Overview

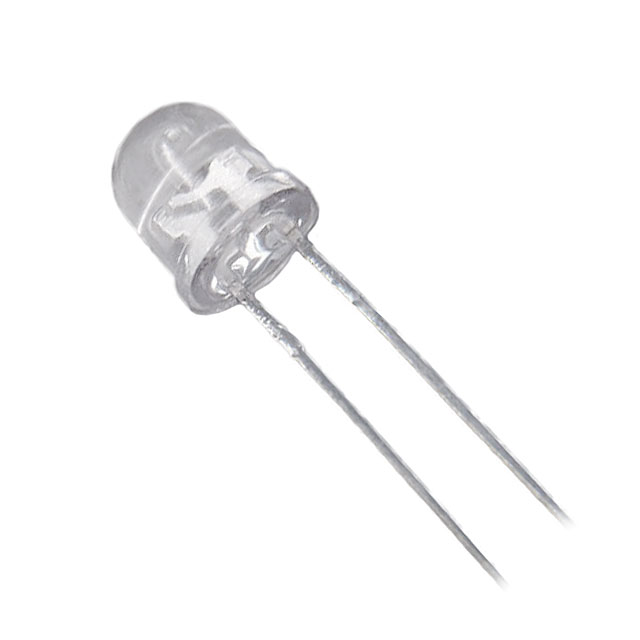

The C513A-MSS-CX0Z0511 is a 5-mm round through-hole LED manufactured by Cree LED, emitting warm white light. It features a dome-shaped lens with a clear finish and a standard radial configuration. The component operates at a forward current of 20 mA with a typical forward voltage of 3.2 V. It delivers a luminous intensity ranging from 2130 to 8200 mcd and maintains a viewing angle of 55 degrees. Designed for reliability, it offers superior high-temperature and high-moisture resistance due to its optical-grade epoxy construction.

Feature Summary

• Advanced optical-grade epoxy construction provides superior high-temperature and high-moisture resistance for dependable performance in lighting applications.
• Dome-shaped lens design ensures excellent readability in sunlight with stable light output over long periods.
• Standard radial through-hole package facilitates easy integration into various circuit board layouts.

Applications

• Torch lights
• Strip channel letters
• Retail displays

Procurement Notes

Verify the specific suffix CX0Z0511 against official Cree LED documentation to confirm exact binning and color temperature tolerances. Ensure compatibility with existing thermal management designs, as the component operates within a specified temperature range. Confirm RoHS compliance status via the latest datasheet before finalizing procurement specifications.

Selection Notes

Select this component when a 5-mm round form factor with warm white emission is required for signage or indicator applications. Consider the 55-degree viewing angle and high luminous intensity for visibility needs. Evaluate the 3.2 V forward voltage drop against available drive circuits to ensure proper current limiting resistor selection for the 20 mA operating condition.

Part Context

This part belongs to the Cree LED C513A series of 5-mm round LEDs, which are engineered for high brightness and durability. The series utilizes advanced packaging techniques to enhance longevity and optical consistency. These components are widely used in commercial and industrial lighting solutions where reliable performance under varying environmental conditions is critical.

Replacement Considerations

Consult official Cree LED substitution guides for verified equivalents. Generic replacements may differ in luminous intensity or color temperature bins. Verify pinout compatibility and mechanical dimensions before integrating alternative parts into existing assemblies.
