Product Detailed Parameters
- Description：LED COOL WHITE CLR 5MM ROUND T/H
- Series：-
- Mfr：Cree LED
- Package：Bulk
- Color：White, Cool
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：5165mcd
- Lens Style：Round with Domed Top
- Lens Size：5.00mm Dia
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：55°
- Mounting Type：Through Hole
- Wavelength - Dominant：9000K
- Wavelength - Peak：-
- Features：-
- Package / Case：Radial
- Supplier Device Package：5mm Round
- Size / Dimension：-
- Height (Max)：9.10mm
Download product information
Overview

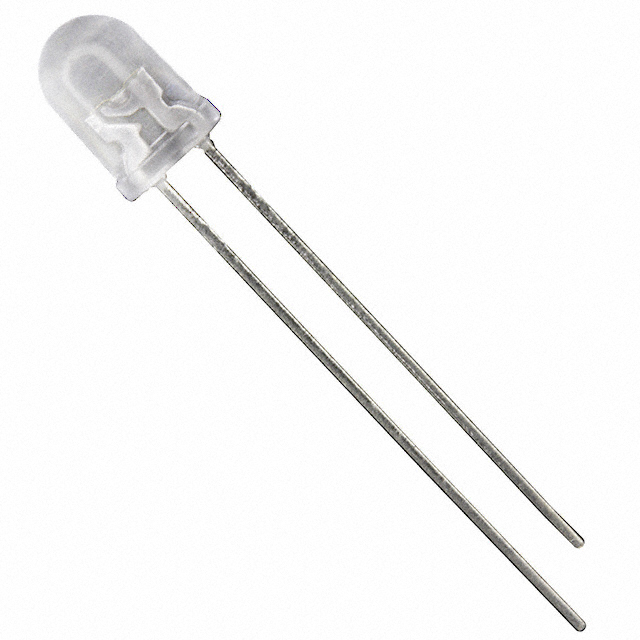

The C513A-WSN-CV0Y0151 is a through-hole, cool white LED in a T-1 3/4 (5 mm) round package. It operates at a forward current of 20 mA with a forward voltage of 3.2 V and a power rating of 120 mW. The component emits light at a color temperature of 7500 K with an intensity of 2130 mcd. It features a 55-degree viewing angle, a dome-shaped clear lens, and functions within a temperature range of -40°C to +95°C.
Feature Summary
- Provides superior light output for excellent readability in sunlight
- Ensures dependable performance with extremely stable light output over long periods
- Constructed with advanced optical-grade epoxy for high temperature and moisture resistance
Applications
- Torch lights
- Strip channel letters
- Retail displays
- General lighting
Procurement Notes
Verify the obsolete status of this Cree LED part before procurement planning. Confirm that alternative sourcing channels are available as standard distribution may be limited. Ensure design updates accommodate the end-of-life status to prevent supply chain disruptions during production phases.
Selection Notes
Select this component for applications requiring reliable through-hole mounting and specific cool white illumination characteristics. Consider the 5 mm form factor and 55-degree beam spread when designing optical systems. Evaluate thermal management requirements given the operating temperature limits and power dissipation specifications.
Part Context
This component belongs to the C513A-WSS/WSN series of 5-mm round LEDs manufactured by Cree LED. The series is designed for general indication and illumination purposes, offering robust construction suitable for demanding environments. It represents a legacy product line within the manufacturer's broader portfolio of lighting solutions.
Replacement Considerations
Consult official datasheets for pin-compatible alternatives within the same family. Verify electrical parameters such as forward voltage and luminous intensity when selecting substitutes to ensure circuit compatibility.
