C513A-WSS-CX0Z0232

Overview

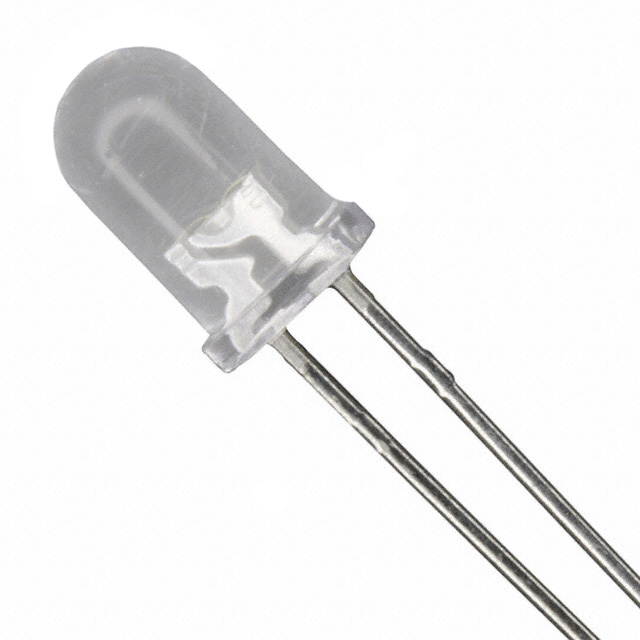

The C513A-WSS-CX0Z0232 is a cool white LED indicator from the Cree LED C513A series, designed for through-hole radial mounting. It features a 5mm round lens with a domed style and provides a luminous intensity of 8090 mcd at a forward current of 20 mA. The device operates with a typical forward voltage of 3.2 V and emits light at a color temperature of 9000 K. It offers a viewing angle of 55 degrees and has a maximum height of 12.20 mm. The component is RoHS compliant and classified under ECCN EAR99.

Feature Summary

• Superior light output for excellent readability in sunlight
• Extremely stable light output over long periods
• Advanced optical-grade epoxy for high-temperature and moisture resistance

Applications

• Torch Light
• Strip Channel Letter
• Retail Display Lighting

Procurement Notes

Verify the specific suffix CX0Z0232 against the official datasheet to confirm the exact binning for color temperature and luminous intensity. Ensure the ordering quantity aligns with the manufacturer's standard packaging requirements. Confirm RoHS compliance status matches project specifications before finalizing procurement orders.

Selection Notes

Select this component when high-intensity cool white illumination is required for general indication or signage applications. The radial through-hole package facilitates easy integration into legacy designs. Consider the 55-degree viewing angle and 9000K color temperature for visibility requirements in bright environments.

Part Context

This part belongs to the Cree LED C513A series of 5-mm Round LEDs. The series is characterized by advanced optical-grade epoxy construction, ensuring dependable performance in lighting and illumination applications. These lamps are engineered to provide superior light output and stability compared to standard indicators.

Replacement Considerations

C513A-WSS-CX0Z0231 is listed as a parameter equivalent substitute within the same product family.
