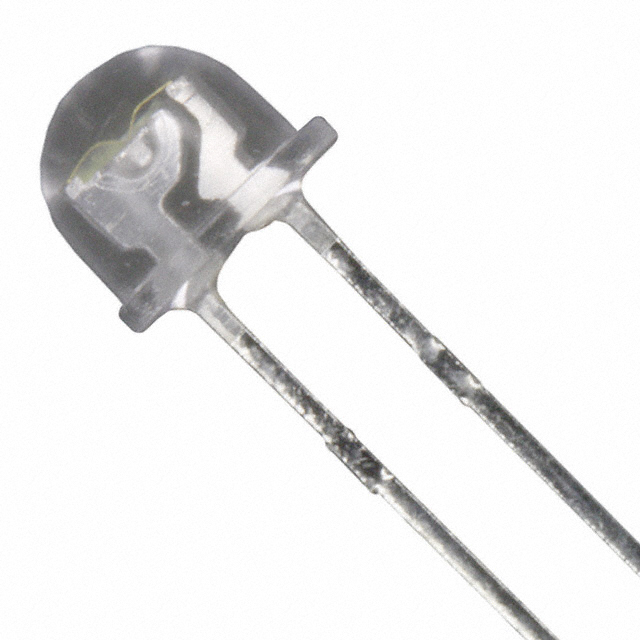

C535A-WJN-CU0V0231

Overview

The C535A-WJN-CU0V0231 is a white LED from Cree LED, featuring a cool white color temperature of 9000K. It utilizes a 5mm (T-1 3/4) radial package with a round lens shape for through-hole mounting. The component operates at a forward voltage of 3.2V and a maximum forward current of 20mA. It delivers a luminous intensity of 4.18 cd. This discrete indicator LED is designed for standard electronic applications requiring reliable visual signaling.

Feature Summary

• Cool white illumination with 9000K color temperature
• Radial 5mm T-1 3/4 package for through-hole installation
• Round lens design for uniform light distribution

Applications

• Panel indicator lights
• Status indication in consumer electronics
• Control board signaling

Procurement Notes

Verify the specific suffix to confirm the exact color temperature and binning requirements for your application. Check lifecycle status as this part may be obsolete or subject to change. Ensure compatibility with existing PCB footprints for 5mm radial components. Consult official datasheets for thermal and electrical limits before integration.

Selection Notes

Select this component when a cool white (9000K) indicator is required. Compare luminous intensity against visibility needs. Consider the 5mm through-hole form factor for manual assembly or legacy board designs. Evaluate alternative colors if warm white or different wavelengths are preferred.

Part Context

This part belongs to the Cree LED discrete indicator series. It is distinct from surface-mount arrays like the XP-E series. The 5mm radial format is common for general-purpose signaling where high-intensity beam control is not critical.

Replacement Considerations

Check for direct substitutes within the same 5mm radial family. Verify that replacement parts match the 3.2V forward voltage and 20mA current ratings. Ensure the color temperature remains consistent if visual matching is required.
