Product Detailed Parameters

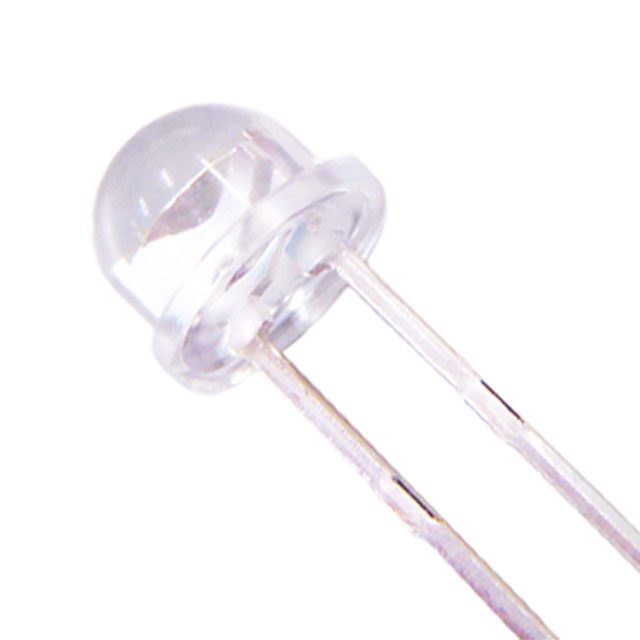

- Description：LED COOL WHITE CLR 5MM ROUND T/H
- Series：C535A-WJN
- Mfr：Cree LED
- Package：Bulk
- Color：White, Cool
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：2850mcd
- Lens Style：Round with Domed Top
- Lens Size：4.80mm Dia
- Voltage - Forward (Vf) (Typ)：3.2V
- Current - Test：20mA
- Viewing Angle：110°
- Mounting Type：Through Hole
- Wavelength - Dominant：9000K
- Wavelength - Peak：-
- Features：-
- Package / Case：Radial
- Supplier Device Package：5mm Round
- Size / Dimension：-
- Height (Max)：6.15mm
- Grade：-
- Qualification：-
Download product information
Overview
The C535A-WJN-CU0W0231 is a high-power white LED from the XLamp CV28 family, designed for demanding signage and video display applications. It features FusionBeam technology to deliver high resolution and enhanced color blending capabilities. The component utilizes a tall lens structure that provides increased physical protection to the LED die while improving overall system reliability. This device is engineered to offer superior directionality, which aids in daytime visibility and helps reduce light trespass in outdoor environments.
Feature Summary
- FusionBeam technology for high-resolution image rendering
- Tall lens design for enhanced durability and reliability
- Optimized directionality for improved visibility
Applications
- Outdoor LED billboards
- High-brightness digital signage
- Video display screens
Procurement Notes
Verify the specific ordering suffix against the official Cree LED datasheet to confirm exact binning parameters, including chromaticity coordinates and forward voltage ranges. Ensure compatibility with existing PCB footprints intended for competing 70/30 oval LEDs if drop-in replacement is required. Confirm thermal management requirements align with the package specifications.
Selection Notes
Select this component when high lumen density and precise optical control are critical for signage applications. The tall lens profile offers mechanical advantages over standard surface-mount packages. Consider the FusionBeam architecture for applications requiring superior color blending and reduced pixelation effects in close-viewing scenarios.
Part Context
This part belongs to the XLamp CV28 family, which represents a generation of application-optimized LEDs for the signage industry. The series is characterized by its ability to provide industry-leading color blending and brightness levels within a compact form factor suitable for modern display architectures.
Replacement Considerations
The component is designed as a drop-in compatible alternative to competing 70/30 oval LEDs. Verify mechanical footprint dimensions and electrical pinout configurations before substitution to ensure proper integration into existing lighting or display systems.
