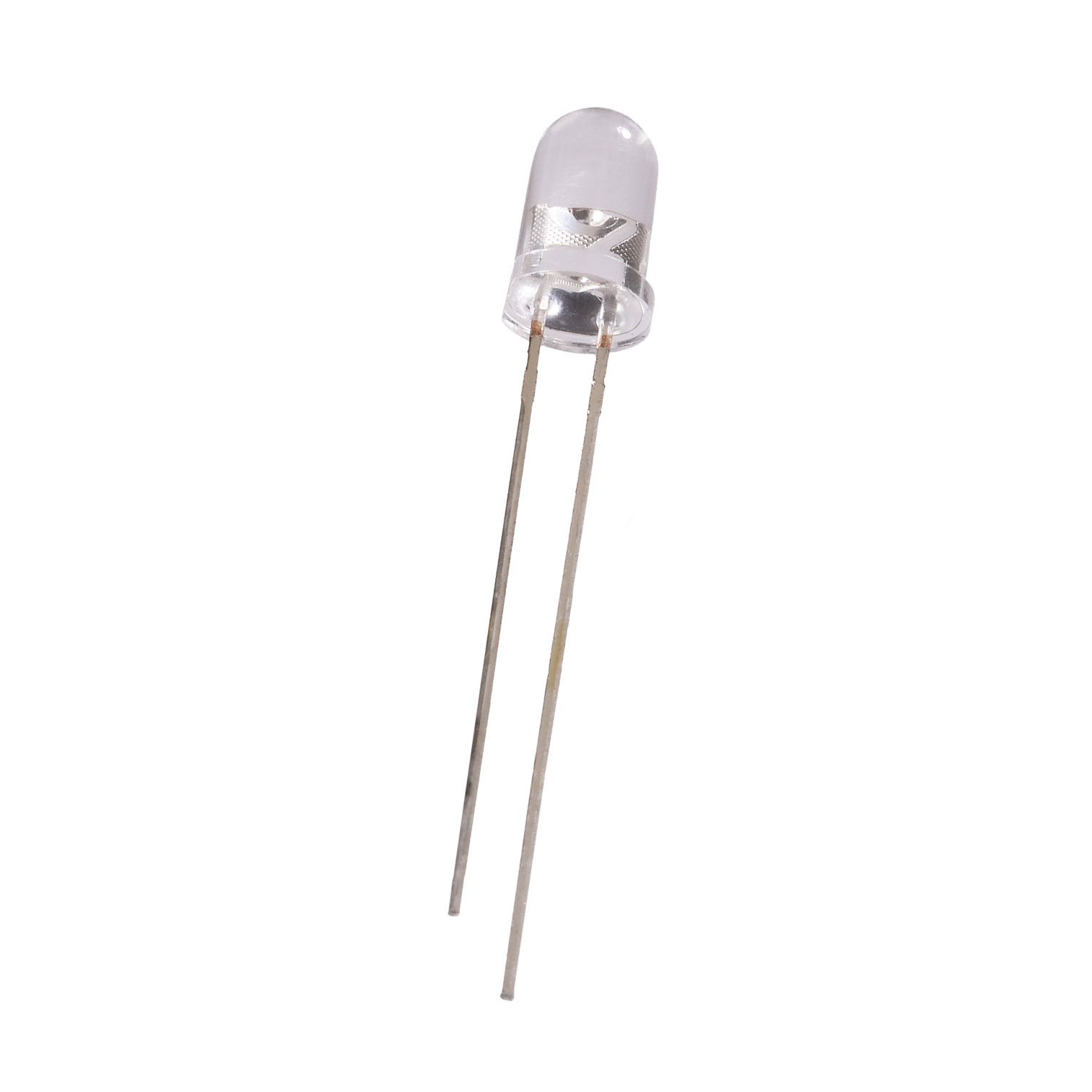

C535A-WJS-CT0W0151

$0.19

Description：LED COOL WHITE CLR 5MM ROUND T/H
Series：C535A-WJS
Mfr：Cree LED
Package：Bulk

SKU:edb2a6303ef0 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED COOL WHITE CLR 5MM ROUND T/H
Series：C535A-WJS
Mfr：Cree LED
Package：Bulk
Color：White, Cool
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：2640mcd
Lens Style：Round with Domed Top
Lens Size：4.80mm Dia
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：110°
Mounting Type：Through Hole
Wavelength - Dominant：9000K
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：5mm Round
Size / Dimension：-
Height (Max)：10.10mm
Grade：-
Qualification：-

Download product information

C535A-WJS-CT0W0151

Overview

C535A-WJS-CT0W0151 is a cool white LED from Cree LED, featuring a T-1 3/4 (5mm) through-hole package. It operates at a forward voltage of 3.2V with a maximum forward current of 20mA and power dissipation of 100mW. The device emits light at a color temperature of 9000K, housed in a clear lens.

Feature Summary

Through-hole radial mounting configuration
Cool white illumination output
Standard 5mm cylindrical form factor

Applications

Panel indicator lighting
General purpose status indication
Consumer electronics front panels

Procurement Notes

Verify the specific suffix CT0W0151 against official Cree documentation to confirm binning and optical characteristics. Ensure compatibility with standard 5mm PCB footprints for reliable mechanical installation and thermal management during assembly processes.

Selection Notes

Select this component for applications requiring high-color-temperature white illumination in a traditional through-hole format. Consider the 110-degree viewing angle and clear lens properties for optimal visibility requirements in industrial or consumer control interfaces.

Part Context

This part belongs to the C535A series of 5mm LEDs manufactured by Cree LED. It utilizes a standard T-1 3/4 leaded package design, distinguishing it from surface-mount alternatives within the broader Cree portfolio while maintaining compatibility with legacy board layouts.

Replacement Considerations

The C535A-WJN-CT0W0151 serves as a documented variant within the same series, offering comparable physical dimensions and electrical parameters for potential substitution in existing designs.
