C566C-GFS-CV0Z0791

Overview

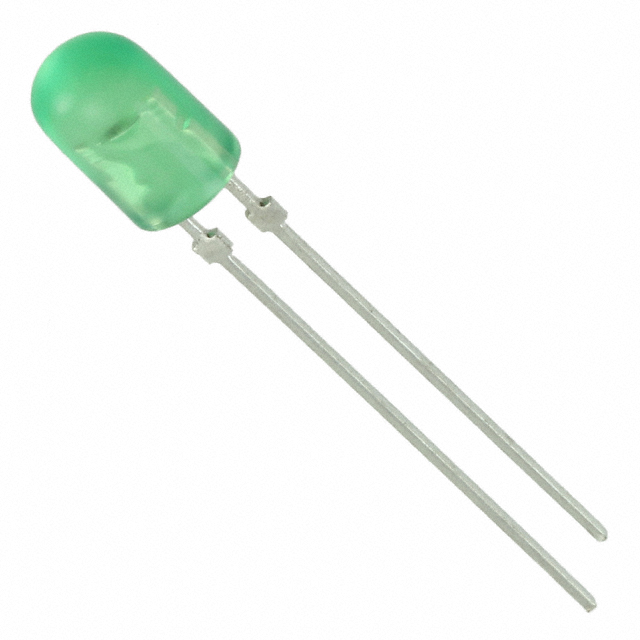

The C566C-GFS-CV0Z0791 is a single-color green LED from the Screen Master family, manufactured by Cree LED. It features a T-1 3/4 (5 mm) oval lens with tinted optics and clear transparency. Key electrical parameters include a forward voltage of 3.4 V at a test current of 20 mA, with a power rating of 140 mW. The device emits light at a peak wavelength of 527 nm and provides an optical intensity of 5200 mcd. Physical dimensions are 5.2 mm in length, 4.6 mm in width, and 7.8 mm in height. It supports a viewing angle of 70° x 35° and operates within a temperature range of -40°C to +85°C.

Feature Summary

• Features a 5 mm oval lens design with tinted color and clear transparency for visual indication.
• Provides high-intensity green emission at 527 nm with 5200 mcd optical output.
• Designed for through-hole radial mounting with standard 2.54 mm lead spacing.

Applications

• Panel status indicators
• Equipment front panel signaling
• Control board visual feedback

Procurement Notes

Verify component availability as this specific part number is listed as discontinued or end-of-life in public records. Confirm if replacement variants such as C566E series or alternative distributors offer compatible stock. Ensure RoHS compliance documentation matches current regulatory requirements before finalizing procurement plans.

Selection Notes

Select this component for applications requiring a standard 5 mm oval form factor with specific green wavelength characteristics. Consider the 3.4 V forward voltage drop when designing drive circuits. Verify that the 70° x 35° viewing angle meets visibility requirements for the intended enclosure design.

Part Context

This component belongs to the Cree LED Screen Master family, which specializes in 5 mm oval LEDs. The C566C series typically includes various colors and lens options. This specific model represents the green variant with defined optical intensity and electrical specifications suitable for general-purpose indication tasks.

Replacement Considerations

Public data indicates parameter-equivalent substitutes such as C566D-GFE-CX0Z0791 or similar Green LEDs from other manufacturers like Broadcom Limited (e.g., HLMP-HM74-34CDD). Verify mechanical fit and electrical compatibility before substitution.
