C5S-24.000-18-20100-A-X1-R

Crystals Overview

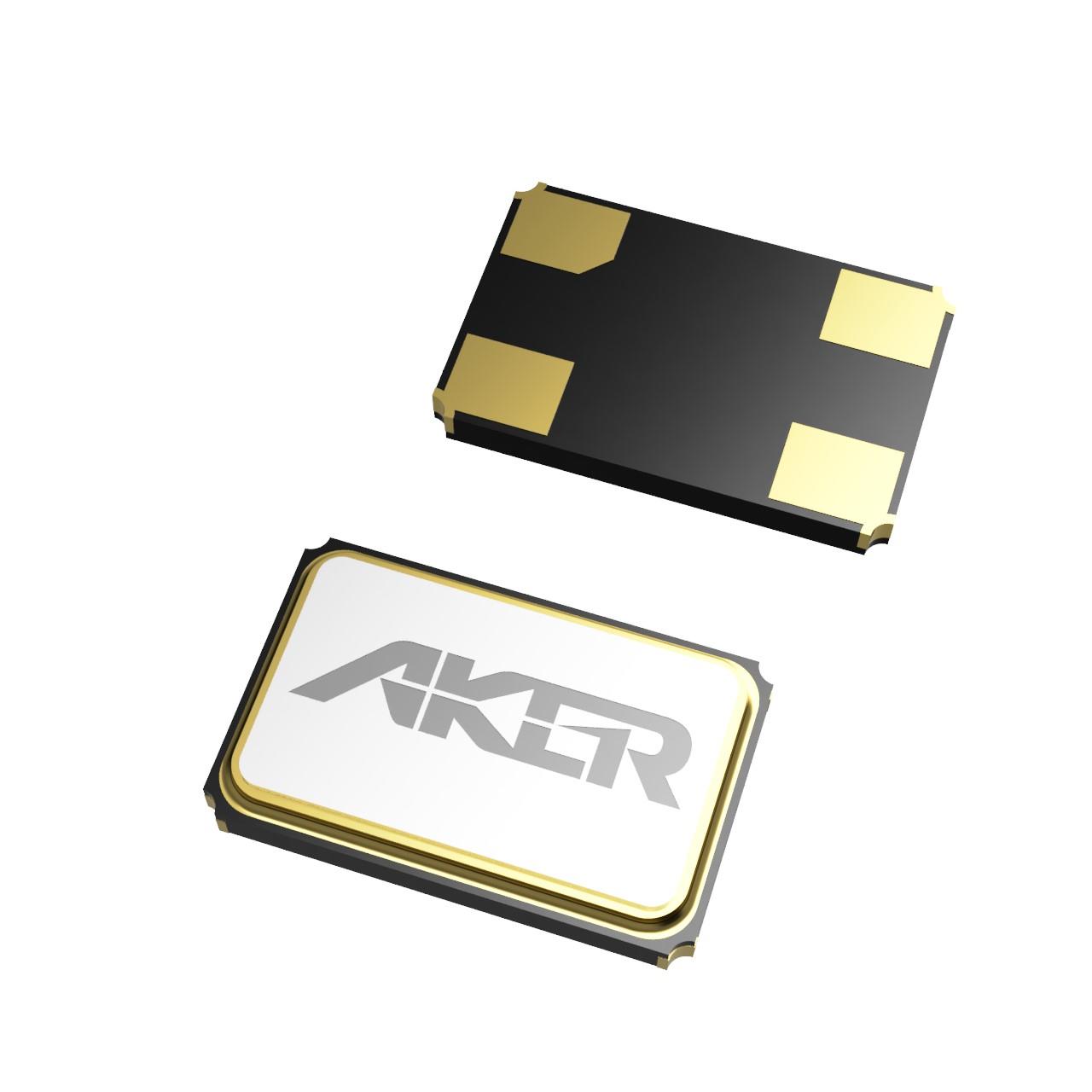

The C5S-24.000-18-20100-A-X1-R is a parallel fundamental quartz crystal manufactured by Aker Technology Corp, operating at a nominal frequency of 24 MHz. It features a frequency tolerance of ±20 ppm and a load capacitance of 18 pF. The component exhibits an equivalent series resistance (ESR) of 40 Ohms and is housed in a 4-SMD, No Lead package with dimensions of 5.0 mm x 3.2 mm x 1.0 mm. It supports a standard operating temperature range from -40°C to +85°C.

Crystals Feature Summary

• Surface mount design utilizing a 4-pin no-lead SMD package for automated assembly compatibility
• Fundamental mode parallel resonance operation ensuring stable oscillation characteristics
• Automotive-grade variant designation indicating compliance with specific reliability standards

Crystals Applications

• Clock generation circuits in automotive electronic control units
• Timing references for microcontrollers in vehicle communication systems
• Frequency standards for automotive infotainment and navigation modules

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact electrical tolerances and packaging configurations. Ensure that the requested part number matches the required frequency stability and load capacitance specifications for the target circuit design. Cross-reference the RoHS compliance status and lead-free requirements with current regulatory standards before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 24 MHz timing source with ±20 ppm initial tolerance is required for surface-mount applications. The 18 pF load capacitance must align with the oscillator circuit's input capacitance requirements. Consider the 40 Ohm ESR value for drive level calculations to prevent over-driving the crystal. The wide temperature range suitability makes it appropriate for environments subject to thermal variation.

Crystals Part Context

This part belongs to the C5S series of surface-mount crystals from Aker Technology Corp. The series offers various frequency options and package sizes tailored for compact electronic designs. The specific model integrates automotive-grade reliability features, distinguishing it from standard commercial-grade counterparts within the broader product portfolio.

Crystals Replacement Considerations

Direct substitutes include other C5S series variants with matching 24 MHz frequency and 18 pF load capacitance. Verify pinout compatibility and physical dimensions when considering alternative manufacturers. Ensure any replacement maintains the ±20 ppm tolerance and 40 Ohm ESR specifications to preserve circuit performance.
