C5S-8.000-12-3030-R

Crystals Overview

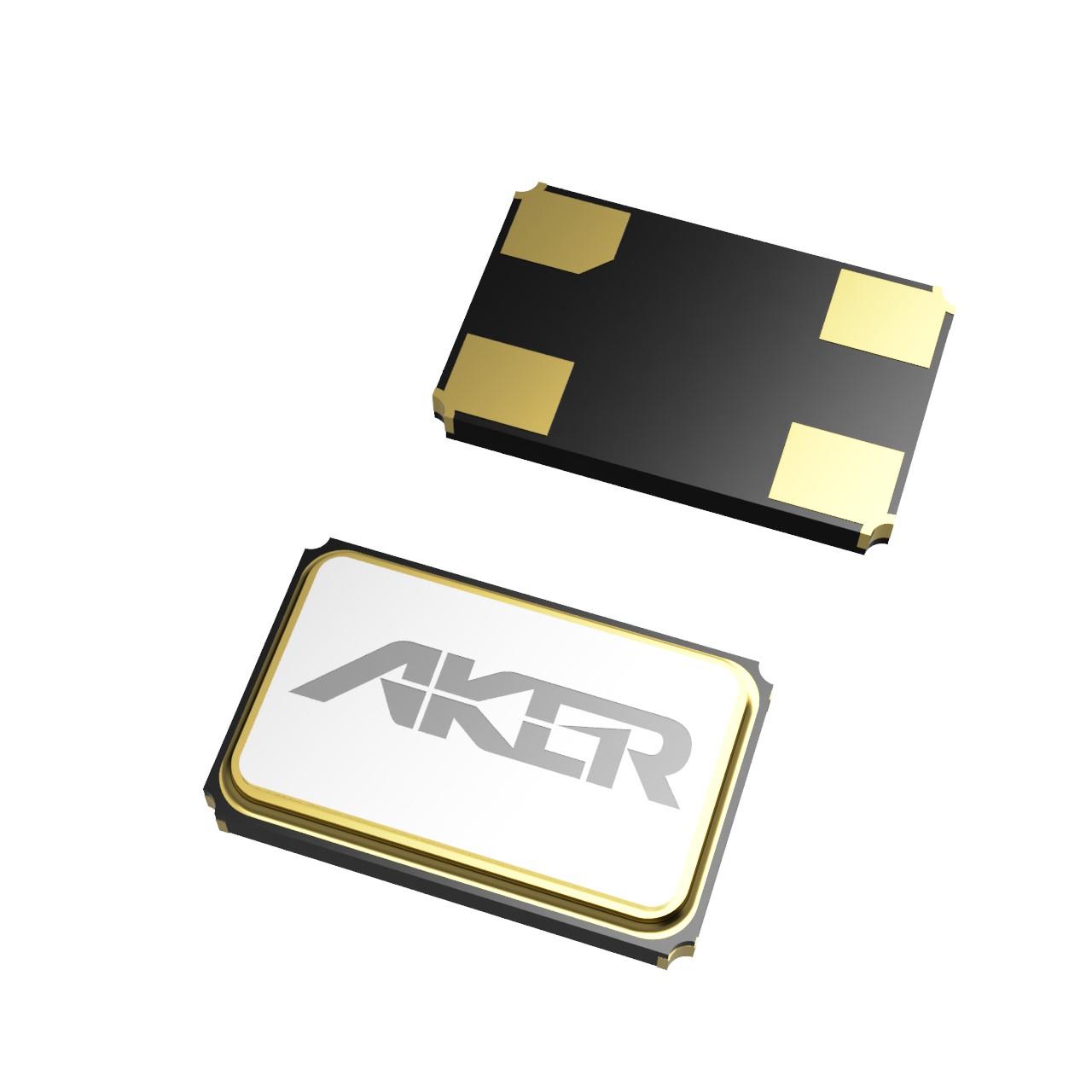

The C5S-8.000-12-3030-R is a parallel fundamental quartz crystal manufactured by Aker Technology Corp, designed for surface-mount applications. It operates at a nominal frequency of 8 MHz with a load capacitance of 12 pF and a maximum series resistance of 150 Ω. The component supports an operating temperature range from -40 °C to +85 °C and features a 4-pin SMD package measuring 7.0 mm in length, 5.0 mm in width, and 1.1 mm in height.

Crystals Feature Summary

• Surface-mount construction with four terminals
• Parallel fundamental resonance mode operation
• Compliant with RoHS environmental standards

Crystals Applications

• General-purpose clock signal generation
• Microcontroller timing circuits
• Communication module oscillators

Crystals Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm electrical parameters and physical dimensions. Ensure that the selected component meets the required frequency tolerance and load capacitance specifications for the target circuit design before finalizing procurement decisions.

Crystals Selection Notes

Select this component when a standard 8 MHz surface-mount crystal is required for general electronic applications. Consider the specified temperature range and mechanical dimensions to ensure compatibility with the printed circuit board layout and operational environment constraints.

Crystals Part Context

This component belongs to the C5S series of quartz crystals produced by Aker Technology Corp. The series offers various frequencies and packages tailored for surface-mount technology, providing reliable frequency control solutions for consumer and industrial electronics without automotive-specific certifications.

Crystals Replacement Considerations

Direct substitutes include other 8 MHz, 12 pF, 4-pin SMD crystals from compatible manufacturers such as C5S-8.000-12-3030-M or C5S-8.000-12-3030-CT, provided they match the electrical and mechanical specifications.
