C5SMF-BJS-CR24Q4T1

Overview

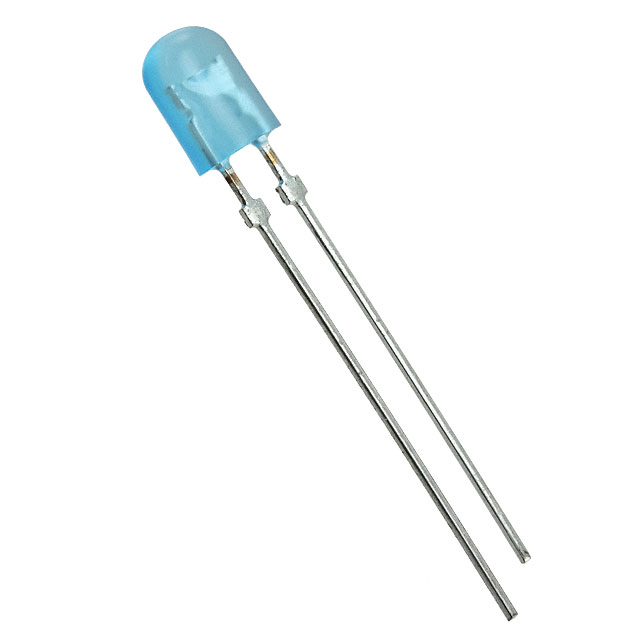

The C5SMF-BJS-CR24Q4T1 is a blue light-emitting diode from the Screen Master series by Cree LED. It features a 5mm (T-1 3/4) oval lens with a clear tint and through-hole radial installation. The component operates at a peak wavelength of 470 nm with a typical forward voltage of 3.4 V. It delivers an optical intensity of 811 mcd when driven at a test current of 20 mA. The package dimensions are 5.10 mm x 3.70 mm, with a maximum height of 10.95 mm. It offers a viewing angle of 100° x 40° and complies with RoHS3 standards.

Feature Summary

• Blue emission with 470 nm peak wavelength
• Clear oval lens design for visibility
• Through-hole radial mounting configuration
• Screen Master series reliability

Applications

• General indicator lighting
• Discrete electronic signaling
• Panel status indication

Procurement Notes

Verify the specific ordering suffix against official Cree documentation to ensure correct binning and lens characteristics. Confirm availability status as distribution channels may list varying stock levels or end-of-life notices. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and compliance with current environmental regulations such as RoHS3 before finalizing procurement orders.

Selection Notes

Select this component for applications requiring a standard 5mm oval form factor with blue illumination. Ensure the circuit design accommodates the 3.4 V forward voltage drop and 20 mA drive current. Consider the 100° x 40° viewing angle for appropriate beam spread requirements. Verify that the through-hole radial package fits the target PCB layout constraints and mechanical housing dimensions.

Part Context

This part belongs to the C5SMF family of single-color LEDs designed for high-brightness indication. The Screen Master series emphasizes consistent performance and visual clarity. The 5mm oval package provides a familiar footprint for legacy designs while offering modern luminous efficiency. It serves as a discrete solution for status monitoring in consumer and industrial electronics.

Replacement Considerations

Direct substitutes include other Cree 5mm blue oval LEDs within the same series, such as C5SMF-BJS variants with compatible electrical parameters. Verify equivalent wavelength, forward voltage, and physical dimensions before substitution.
