C5SMF-GJF-CV0Y0791

Overview

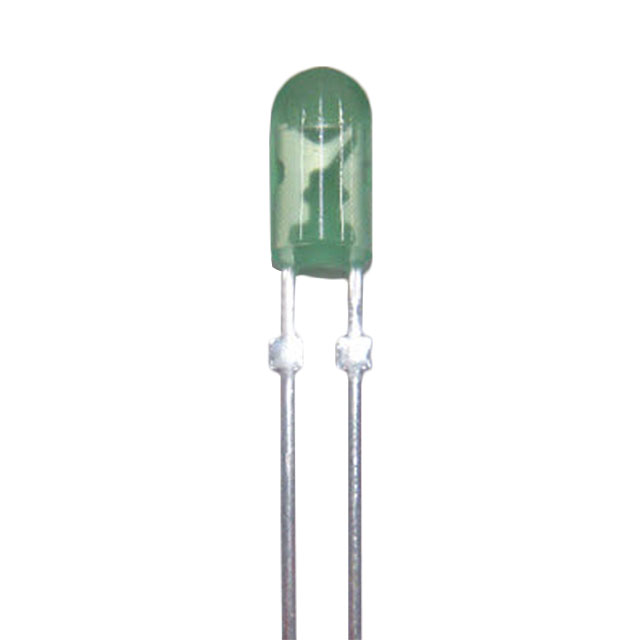

The C5SMF-GJF-CV0Y0791 is a green single-color LED from the Screen Master family, manufactured by Cree LED. It utilizes a T-1 3/4 (5 mm) through-hole package with an oval lens shape and tinted lens color. The component emits light at a primary wavelength of 527 nm. Key electrical parameters include a forward voltage of 3.4 V and a power rating of 140 mW. The device features a viewing angle of 105 degrees by 50 degrees and has a luminous intensity of 2130 mcd.

Feature Summary

• Features an oval-shaped radiation pattern designed for wide-angle visibility in signage applications.
• Constructed with a tinted lens to enhance visual contrast and signal clarity.
• Engineered for high luminous intensity suitable for variable-message displays.

Applications

• Variable-message signs
• Passenger-information signs
• Public transportation display systems

Procurement Notes

Verify the specific suffix CV0Y0791 against official Cree LED documentation to confirm exact binning and optical characteristics. Ensure compatibility with existing PCB footprints and thermal management requirements for through-hole mounting. Confirm availability status as distribution channels may vary.

Selection Notes

Select this component when a wide viewing angle and high brightness are required for green indicator or display applications. Compare against other Screen Master variants based on specific luminous intensity needs and forward voltage constraints within the circuit design.

Part Context

This part belongs to the Screen Master series of oval LEDs, which are optimized for outdoor and indoor signage. The family provides consistent performance across various colors, ensuring uniform appearance in multi-color display arrays used for information dissemination.

Replacement Considerations

Consult official Cree LED substitution guides for direct equivalents. Verify that alternative parts match the 5mm oval footprint, 527 nm wavelength, and similar luminous intensity specifications to maintain display quality.
