C5SMF-GJS-CV0Y0792

Overview

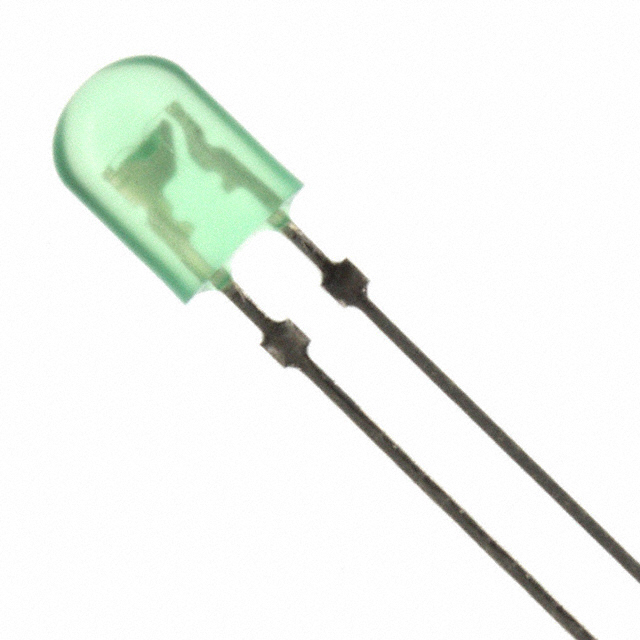

The C5SMF-GJS-CV0Y0792 is a green light-emitting diode from the Screen Master series by Cree LED. It utilizes a 5mm (T-1 3/4) through-hole package with two pins and an oval lens shape. The component emits at a main wavelength of 535 nm with a forward voltage of 4 V. Key electrical parameters include a luminous intensity of 8.2 cd and a maximum power dissipation rating of 140 mW.

Feature Summary

• Features an oval-shaped lens for directional light emission
• Designed for through-hole mounting on printed circuit boards
• Part of the Screen Master product line optimized for display applications

Applications

• Indicator lights in electronic equipment
• Display panel illumination
• Status indication in control panels

Procurement Notes

Verify the specific suffix CV0Y0792 against official datasheets to confirm binning and optical characteristics. Ensure compatibility with existing PCB footprints for the T-1 3/4 package. Confirm RoHS compliance status through manufacturer documentation before integration into regulated products.

Selection Notes

Select this component when a 535 nm green wavelength is required for visual indicators. The 4 V forward voltage drop must be accounted for in drive circuit design. Consider the 8.2 cd intensity for visibility requirements in the intended operating environment.

Part Context

This part belongs to the C5SMF-GJS series, which represents standard single-color LEDs in the Screen Master family. These components are engineered for general-purpose signaling and display tasks requiring reliable green emission within a traditional axial-leaded form factor.

Replacement Considerations

Direct substitutes may include other Cree LED parts within the C5SMF series sharing identical pinout and mechanical dimensions. Verify spectral peak and forward voltage alignment to ensure functional equivalence in existing circuits.
