C5SMF-RJE-CU14QBB2

Overview

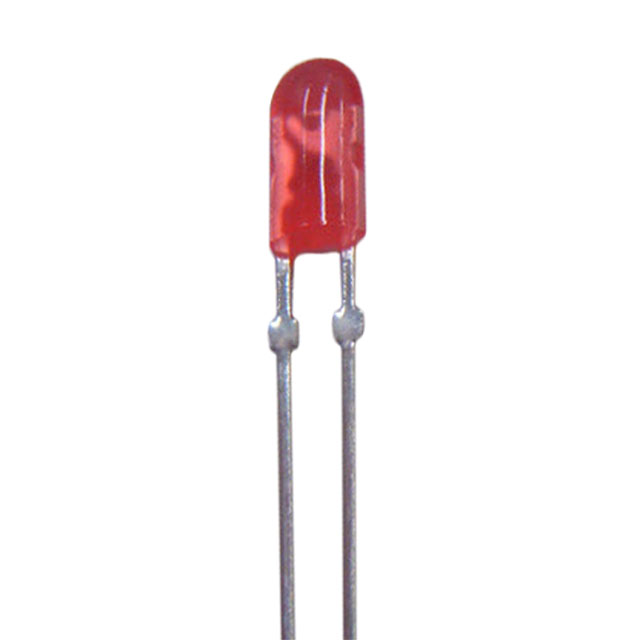

The C5SMF-RJE-CU14QBB2 is a single-color red LED from the Screen Master family, manufactured by Cree LED. It utilizes a through-hole mounting style within a T-1 3/4 (5 mm) oval package. The component emits light at a wavelength of 624 nm with a luminous intensity of 770 mcd. Electrical characteristics include a forward current of 20 mA and a forward voltage of 2.1 V. The lens features an oval shape with water-clear transparency and dimensions of 4.2 mm x 3.1 mm x 6.3 mm.

Feature Summary

• Designed specifically for variable-message signs and passenger-information displays
• Provides high luminous intensity suitable for wide-field viewing applications
• Features an oval-shaped radiation pattern for optimized visibility

Applications

• Variable-message traffic signs
• Passenger information display systems
• Public transit indicator panels

Procurement Notes

Verify availability status as this component may be subject to end-of-life announcements or limited distribution channels. Confirm RoHS compliance details directly with the manufacturer or authorized distributors before procurement. Ensure that the specific ordering suffix matches the required optical and electrical specifications for your design implementation.

Selection Notes

Select this component when designing signage requiring high-intensity red illumination with a wide viewing angle. The oval package geometry supports uniform light distribution across broad areas. Consider thermal management requirements given the power rating and operating temperature range specified in the datasheet for reliable long-term performance.

Part Context

This part belongs to the Screen Master family of LEDs, which are application-optimized solutions developed by Cree LED. The family focuses on providing high-performance lighting components for demanding visual display environments. These products leverage advanced semiconductor technology to ensure consistent brightness and color stability over extended operational periods.

Replacement Considerations

Consult official replacement guides for direct substitutes. Verify compatibility regarding pin configuration, spectral output, and mechanical footprint before integrating alternative components into existing designs.
