C5SMF-RJF-CT0W0BB1

Overview

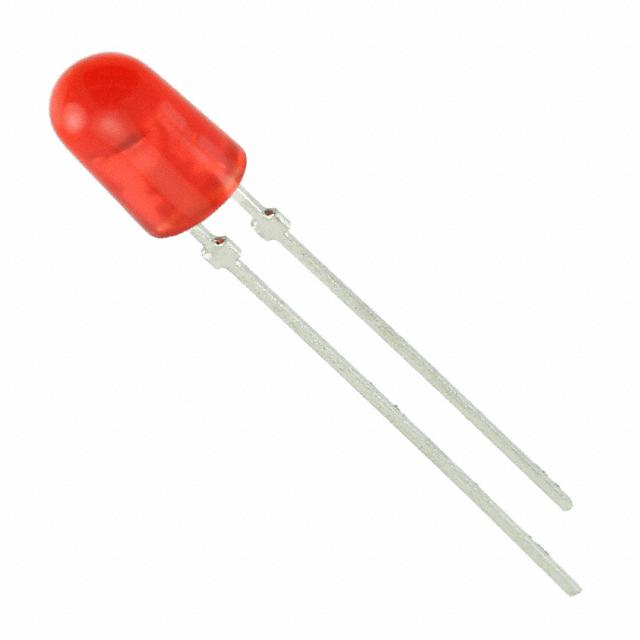

The C5SMF-RJF-CT0W0BB1 is a single-color red LED from the Screen Master series by Cree LED. It utilizes a T-1 3/4 (5 mm) through-hole package with an oval lens shape and water clear transparency. The component emits light at a peak wavelength of 624 nm with a forward voltage of 2.1 V at a test current of 20 mA. Key electrical parameters include a power rating of 130 mW and a luminous intensity of 1310 mcd. The device operates within a temperature range of -40 °C to +95 °C and features a viewing angle of 100 degrees x 45 degrees.

Feature Summary

• Features a high-intensity red emission optimized for visibility in signage applications
• Utilizes a standard T-1 3/4 radial leaded package for easy through-hole integration
• Designed with a water clear oval lens to provide a wide viewing angle

Applications

• LED billboards and large format displays
• Outdoor digital signage panels
• High-brightness status indicators

Procurement Notes

Verify the specific suffix CT0W0BB1 against official Cree documentation to confirm exact binning and optical characteristics. Ensure compatibility with existing PCB footprints for the T-1 3/4 package. Confirm RoHS compliance status via the manufacturer's latest datasheet before finalizing procurement specifications.

Selection Notes

Select this component when a high-luminosity red indicator is required for direct-view applications. The 1310 mcd intensity supports visibility in well-lit environments. The 2.1 V forward voltage allows for efficient driving in low-voltage circuits. Consider the 100x45 degree viewing angle for optimal audience coverage in display arrays.

Part Context

This part belongs to the Screen Master family, which focuses on application-optimized solutions for display technologies. The C5SMF series provides scalable architecture for design upgrades. Cree LED manufactures these components using established processes to ensure consistent performance across production batches for commercial lighting and display needs.

Replacement Considerations

Check for compatible substitutes within the C5SMF-RJF series or equivalent T-1 3/4 red LEDs from other manufacturers. Verify that replacement parts match the 624 nm wavelength and 1310 mcd intensity requirements to maintain visual consistency in display assemblies.

FAQ

What is the typical forward voltage for this LED?

The typical forward voltage is 2.1 V when driven at a test current of 20 mA.

Does this component have a wide viewing angle?

Yes, it features a viewing angle of 100 degrees horizontally and 45 degrees vertically.
