C5SMF-RJS-CT0W0BB2

Description：LED RED CLEAR 5MM ROUND T/H
Series：Screen Master®
Mfr：Cree LED
Package：Cut Tape (CT),Tape & Box (TB)

SKU:e910d5d32452 Category: LED Indication - Discrete Brand: Cree LED

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RED CLEAR 5MM ROUND T/H
Series：Screen Master®
Mfr：Cree LED
Package：Cut Tape (CT),Tape & Box (TB)
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Clear
Millicandela Rating：2640mcd
Lens Style：Oval with Domed Top
Lens Size：5.10mm x 3.70mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：100° x 40°
Mounting Type：Through Hole
Wavelength - Dominant：621nm
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：5mm Round
Size / Dimension：-
Height (Max)：10.95mm

Download product information

C5SMF-RJS-CT0W0BB2

Overview

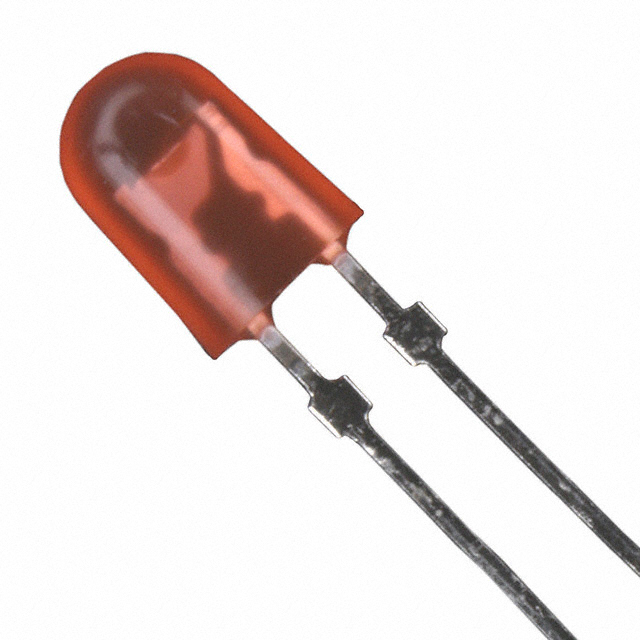

The C5SMF-RJS-CT0W0BB2 is a single-color red LED from the Screen Master family, manufactured by Cree LED. It utilizes a T-1 3/4 (5mm) oval package with two pins for through-hole mounting. The device emits light at a peak wavelength of 624 nm with a forward voltage of 2.1 V and a power rating of 130 mW. It features a viewing angle of 100 degrees by 40 degrees and an intensity of 2640 mcd. The lens is water clear, and it operates within a temperature range of -40°C to +95°C.

Feature Summary

Designed specifically for variable-message signs and passenger-information displays
Provides high luminous intensity suitable for bright sunlight conditions
Features an oval-shaped radiation pattern for wide-angle visibility

Applications

Variable-message signs
Passenger-information signs
Outdoor applications requiring bright sunlight readability

Procurement Notes

Verify the specific suffix CT0W0BB2 against official Cree documentation to confirm exact binning and optical characteristics. Ensure compatibility with through-hole assembly processes. Confirm RoHS compliance status via the manufacturer's current datasheet. Check for any regional distribution restrictions or supply limitations before finalizing procurement plans.

Selection Notes

Select this component when high-intensity red illumination is required for outdoor signage. The 100x40 degree viewing angle supports wide-area visibility. Consider the 2.1 V forward voltage for circuit design. Verify thermal management requirements given the 130 mW power rating and operating temperature limits up to 95°C.

Part Context

This part belongs to the Screen Master C5SMF series, which focuses on standard LEDs for display applications. The oval shape distinguishes it from round LEDs, offering a different radiation profile. It is part of a broader family including amber and green variants with similar mechanical footprints but differing optical outputs.
