C6S-16.000-12-5050-X-R

Crystals Overview

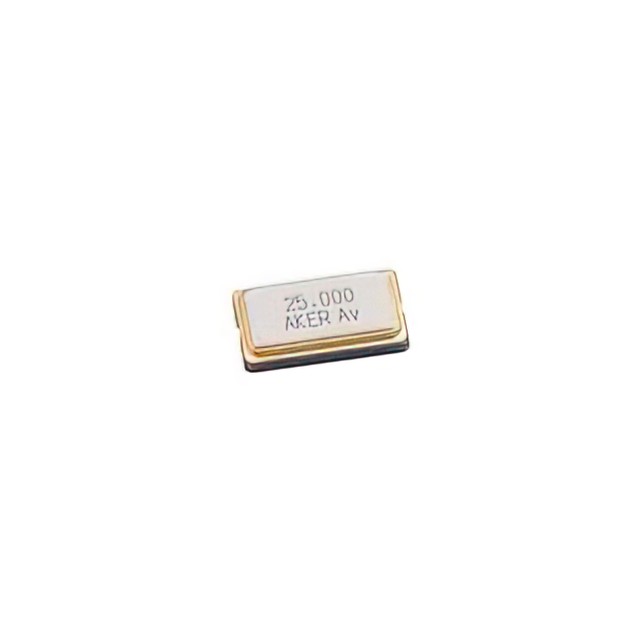

The C6S-16.000-12-5050-X-R is a parallel fundamental quartz crystal manufactured by Aker Technology Corp, designed for surface-mount applications. It operates at a nominal frequency of 16 MHz with a load capacitance of 12 pF and a frequency tolerance of ±50 ppm. The component features an equivalent series resistance of 30 ohms and supports an operating temperature range from -40°C to +85°C. Packaged in a compact 4-pin SMD form factor measuring 5.0 mm x 3.2 mm x 1.0 mm, it complies with RoHS standards.

Crystals Feature Summary

• Surface-mount design suitable for automated assembly processes
• Fundamental parallel resonance mode operation
• RoHS compliant construction

Crystals Applications

• General-purpose clock generation circuits
• Microcontroller oscillator interfaces
• Consumer electronic timing references

Crystals Procurement Notes

Verify the specific suffix configuration against the manufacturer's official datasheet to ensure compatibility with target circuit requirements. Confirm that the package dimensions and pinout align with the intended PCB footprint. Cross-reference the electrical specifications, particularly the load capacitance and ESR values, with the oscillator design parameters to guarantee stable frequency performance under operational conditions.

Crystals Selection Notes

Select this component when a standard 16 MHz reference is required for space-constrained designs utilizing surface-mount technology. The ±50 ppm tolerance is appropriate for general timing applications where high precision is not critical. Ensure the driving circuit provides adequate drive level to maintain stability without exceeding the specified power limits. Consider the thermal range if the application environment experiences significant temperature fluctuations.

Crystals Part Context

This part belongs to the C6S series of surface-mount crystals from Aker Technology Corp. The series offers various frequency options and package sizes tailored for modern electronics manufacturing. The C6S designation indicates a specific physical dimension and mounting style within the company's portfolio of passive timing components.

Crystals Replacement Considerations

Direct substitutes must match the 16 MHz frequency, 12 pF load capacitance, and 4-SMD package dimensions. Verify equivalent ESR and drive level specifications to ensure circuit compatibility.
