C6S-25.000-20-3030-R

Crystals Overview

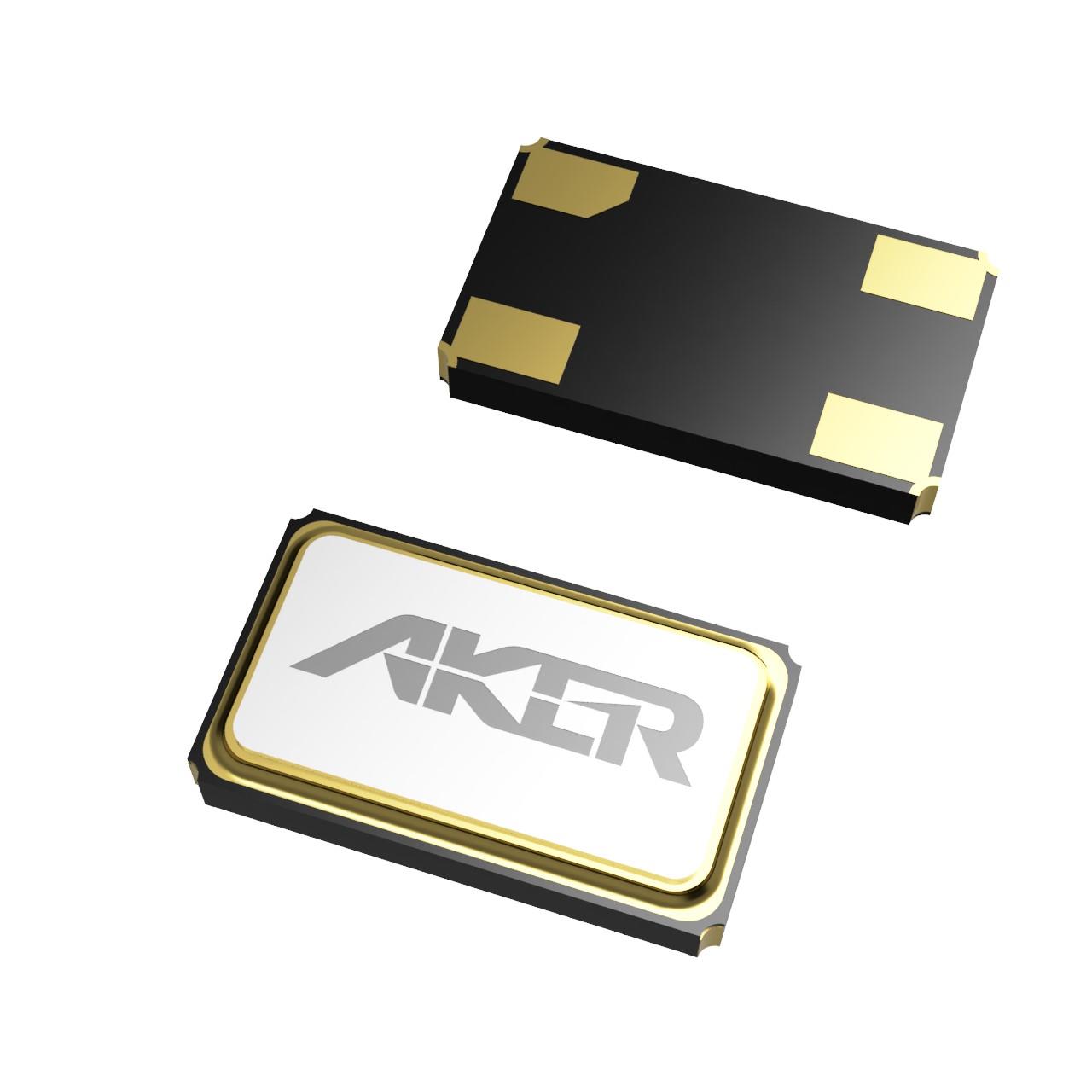

The C6S-25.000-20-3030-R is a surface-mount quartz crystal oscillator manufactured by Aker Technology Corp. It operates at a standard frequency of 25 MHz with a frequency tolerance and stability of ±30 ppm. The component features a 4-SMD, No Lead package configuration. Key electrical parameters include a load capacitance of 20 pF and a series resistance of 40 Ohms. The device is designed for operation within a temperature range of -20°C to +70°C.

Crystals Feature Summary

• Surface-mount construction utilizing a 4-pin SMD package without leads
• Quartz resonator technology providing stable oscillation at 25 MHz
• Compliance with RoHS standards for restricted hazardous substances

Crystals Applications

• General-purpose clock signal generation in electronic circuits
• Timing reference sources for microcontroller systems
• Oscillator circuits requiring standardized 25 MHz frequencies

Crystals Procurement Notes

Verify the specific load capacitance requirements against the target circuit design, as this component specifies 20 pF. Confirm that the operating temperature range of -20°C to +70°C aligns with the environmental conditions of the intended application. Ensure compatibility with the 4-SMD footprint dimensions during PCB layout. Cross-reference the series resistance value of 40 Ohms with driver specifications to ensure proper drive level management.

Crystals Selection Notes

Select this component when a 25 MHz surface-mount crystal is required with moderate frequency stability. The 20 pF load capacitance dictates the necessary external capacitor values for circuit tuning. Consider the 40 Ohm series resistance for impedance matching. Evaluate the -20°C to +70°C temperature range against operational extremes. Compare package dimensions to available board space constraints.

Crystals Part Context

This part belongs to the C6S series of surface-mount crystals from Aker Technology Corp. The series designation indicates a specific form factor and mounting style suitable for automated assembly processes. The model number encodes key parameters including frequency, load capacitance, and package type. This family of components is distinct from other Aker product lines based on physical dimensions and electrical characteristics.

Crystals Replacement Considerations

Direct substitutes must match the 25 MHz frequency, 20 pF load capacitance, and 4-SMD package. Verify equivalent frequency stability and series resistance values. Ensure the replacement component supports the same operating temperature range. Check for identical pinout configurations to maintain PCB compatibility.
