C7S-8.000-18-3030-R

Crystals Overview

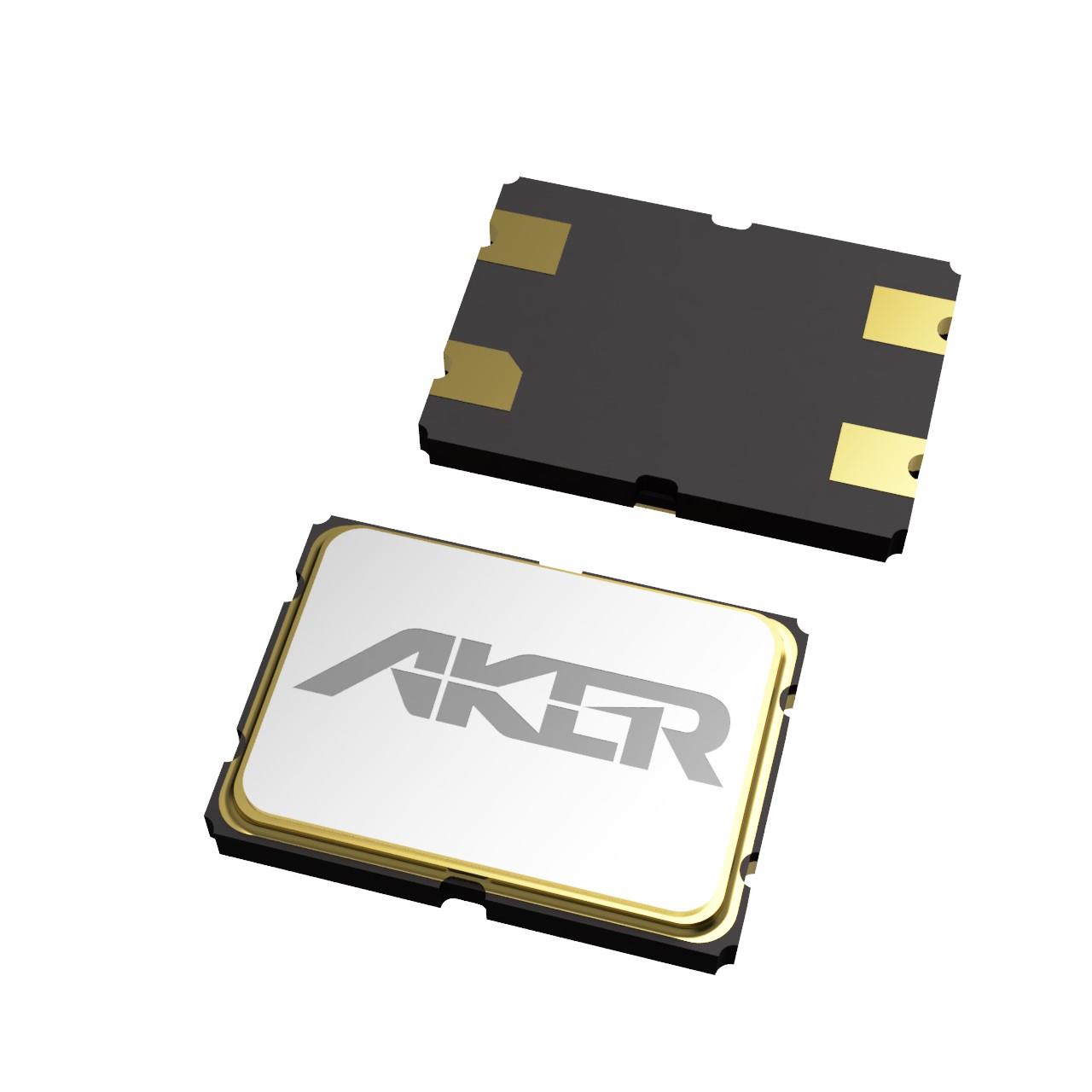

The C7S-8.000-18-3030-R is a surface-mount quartz crystal manufactured by Aker Technology Corp, operating at a standard frequency of 8 MHz. It features a ±30 ppm frequency tolerance and stability, with a load capacitance of 18 pF. The component utilizes a 4-pin SMD package without leads, measuring 7 mm in length, 5 mm in width, and 1.1 mm in height. It exhibits a series resistance of 70 Ohms and operates within a temperature range of -20°C to 70°C. The device complies with RoHS standards and is supplied in tape and reel packaging.

Crystals Feature Summary

• Surface-mount quartz crystal design for automated assembly processes
• Stable 8 MHz oscillation with ±30 ppm tolerance and stability
• Compact 4-pin SMD package optimized for space-constrained PCB layouts

Crystals Applications

• General-purpose clock signal generation in consumer electronics
• Microcontroller system timing references
• Communication interface synchronization circuits

Crystals Procurement Notes

Verify the specific suffix 'R' against official manufacturer documentation to confirm tape and reel packaging requirements. Ensure the selected variant matches the required 18 pF load capacitance and 70 Ohm ESR specifications for circuit compatibility. Cross-reference the -20°C to 70°C operating temperature range with application environmental constraints before finalizing procurement orders.

Crystals Selection Notes

Select this component when an 8 MHz reference is required for surface-mount applications with moderate frequency stability needs. The 18 pF load capacitance must align with the oscillator circuit's external capacitor values. Consider the 70 Ohm series resistance for drive level sensitivity and ensure the 4-pin footprint matches the target PCB design guidelines.

Crystals Part Context

This part belongs to the C7S series of surface-mount crystals from Aker Technology Corp. The series offers various frequency options and package sizes designed for modern electronic assemblies. The C7S-8.000-18-3030-R specifically addresses the need for reliable 8 MHz timing in compact devices, providing a balance between performance and manufacturing efficiency through its standardized SMD form factor.

Crystals Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative 8 MHz SMD crystals based on matching load capacitance (18 pF), frequency tolerance (±30 ppm), and physical dimensions.
