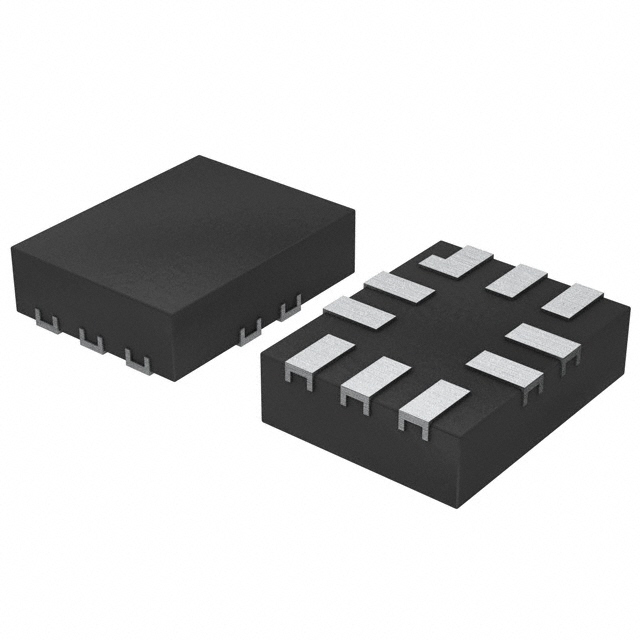

C8051T606-ZM

Overview

The C8051T606-ZM is a mixed-signal microcontroller from the C8051T60x series, featuring an 8-bit CIP-51 core with up to 25 MIPS throughput at a 25 MHz clock. It integrates 1.5 kB of byte-programmable EPROM and 128 bytes of internal data RAM. The device operates on a supply voltage range of 1.8 V to 3.6 V and includes an on-chip LDO regulator and voltage monitor. Key peripherals include a hardware UART, SMBus interface, three 16-bit timers, and a Programmable Counter Array (PCA). It utilizes a calibrated precision internal oscillator with ±2% accuracy.

Feature Summary

• High-speed pipelined CIP-51 architecture executes most instructions in one or two system clocks for efficient processing.
• Integrated analog features include a comparator with programmable hysteresis and response time.
• Flexible clocking options allow switching between internal oscillators and external sources on-the-fly.
• On-chip debug circuitry supports full-speed, non-intrusive in-system debugging without external emulators.

Applications

• Battery-powered embedded systems requiring low voltage operation
• Industrial control applications utilizing serial communication interfaces
• Portable instrumentation devices needing compact form factors

Procurement Notes

Verify the specific suffix ZM corresponds to the QFN-10 package configuration as documented in the datasheet ordering information. Confirm that the component status aligns with current manufacturing availability, as older silicon labs parts may have lifecycle changes. Ensure design compatibility with the 1.8 V to 3.6 V operating range and verify thermal requirements for the 2 mm x 2 mm package footprint during procurement planning.

Selection Notes

Select this model when a compact 10-pin QFN package is required alongside standard 8051 compatibility. The C8051T606 provides sufficient memory for basic logic control while offering integrated analog comparators. Consider the internal oscillator accuracy if precise timing is needed without external crystals. Evaluate the pin count against I/O requirements since the QFN-10 limits available digital ports compared to larger packages.

Part Context

This component belongs to the C8051T60x family of mixed-signal microcontrollers designed for high integration in small spaces. Unlike the T600/2/4 variants which include a 10-bit ADC, the T606 focuses on digital control and analog comparison within a minimal footprint. The series emphasizes system-on-chip capabilities by integrating essential peripherals like UART and SMBus directly onto the die.

Replacement Considerations

Public confirmed substitute part numbers: None identified in verified documentation.
