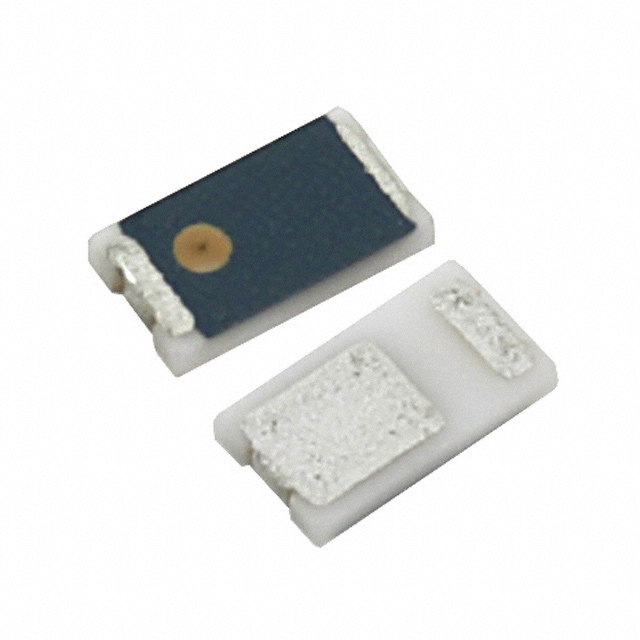

C8A50Z4B

$2.54

Description：TERMINATION FLANGLESS 50 OHM SMD
Series：-
Mfr：TTM Technologies, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c62faa660d9f Category: RF Misc ICs and Modules Brand: TTM Technologies, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TERMINATION FLANGLESS 50 OHM SMD
Series：-
Mfr：TTM Technologies, Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Termination
Frequency：0Hz ~ 6GHz
RF Type：DCS, GSM, PCS
Secondary Attributes：-
Mounting Type：Surface Mount
Package / Case：2-SMD, No Lead
Supplier Device Package：SMD
Grade：-
Qualification：-

Download product information

C8A50Z4B

Overview

The C8A50Z4B is a high-frequency surface-mount RF resistor manufactured by TTM Technologies, Inc. It provides a nominal resistance of 50 Ohms with an 8-watt power rating. The component operates effectively from DC up to 6.0 GHz and maintains a tolerance of 2%. Designed for robust performance, it supports a wide operating temperature range from -55°C to +125°C. The device utilizes a surface-mount (SMD) package suitable for automated assembly processes in demanding electronic applications.

Feature Summary

Operates at frequencies up to 6.0 GHz
Provides 8-watt power handling capability
Maintains 2% resistance tolerance
Supports surface-mount technology

Applications

DCS signal termination
GSM circuit termination
PCS network termination

Procurement Notes

Verify the specific manufacturer part number against official TTM Technologies documentation to ensure compatibility with your design requirements. Confirm that the 6.0 GHz frequency limit and 8-watt power rating align with your system's operational parameters. Check for any recent product change notices or packaging updates that may affect procurement logistics or assembly procedures.

Selection Notes

Select this component when a high-power RF termination is required for DCS, GSM, or PCS applications. Ensure the PCB layout accommodates the surface-mount footprint and thermal dissipation needs associated with an 8-watt rating. Verify that the 50-Ohm impedance matches the transmission line characteristics of the circuit design to minimize signal reflections.

Part Context

This component belongs to the family of high-frequency/RF resistors produced by TTM Technologies, Inc. These devices are engineered specifically for radio frequency environments where standard resistors may fail due to parasitic effects or insufficient power handling. The C8A50Z4B represents a specialized solution for terminating signals in wireless communication infrastructure.
