CA-301 14.7456M-C

Crystals Overview

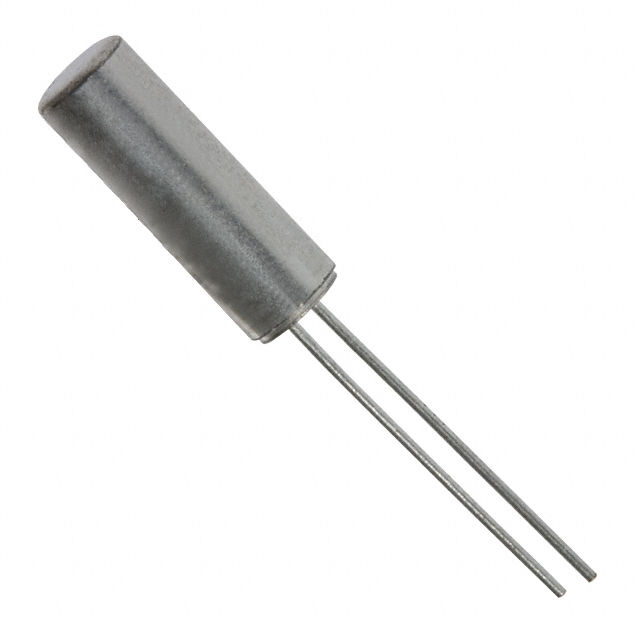

The CA-301 14.7456M-C is a through-hole MHz crystal oscillator manufactured by EPSON. It operates at a standard frequency of 14.7456MHz with a frequency tolerance of ±30 ppm and an aging rate of ±5 ppm per year for the first period. The component features a load capacitance of 18pF and utilizes a cylindrical can radial package. It has two pins and supports a maximum operating temperature of 70°C. This series is RoHS compliant, though specific variants may include leaded options.

Crystals Feature Summary

• Through-hole mounting technology for reliable mechanical connection
• Cylindrical can radial package design
• Standard frequency operation at 14.7456MHz

Crystals Applications

• General timing circuits requiring stable clock signals
• Microcontroller system clocks
• Communication interface timing references

Crystals Procurement Notes

Verify the exact ordering suffix, as 'PBFREE' indicates lead-free compliance while other suffixes may denote leaded versions. Confirm availability status, as some listings indicate this part may be obsolete or discontinued. Ensure the selected variant matches the required thermal and electrical specifications for the target application environment.

Crystals Selection Notes

Select this component when a 14.7456MHz frequency is required for through-hole assembly. Consider the ±30 ppm tolerance and 18pF load capacitance to ensure compatibility with the host oscillator circuit. Verify that the 70°C maximum operating temperature meets the environmental requirements of the final product design.

Crystals Part Context

This part belongs to the CA-301 series of crystals from EPSON. The series offers various frequencies in a cylindrical can radial package. The CA-301 14.7456M-C specifically targets applications needing precise timing at 14.7456MHz. It is distinct from surface-mount variants and other frequencies within the same family.

Crystals Replacement Considerations

Similar substitutes are available for this obsolete part. Verify that any replacement matches the 14.7456MHz frequency, 18pF load capacitance, and through-hole package dimensions to ensure functional equivalence.
