CA20C2403GMR

Oscillators Overview

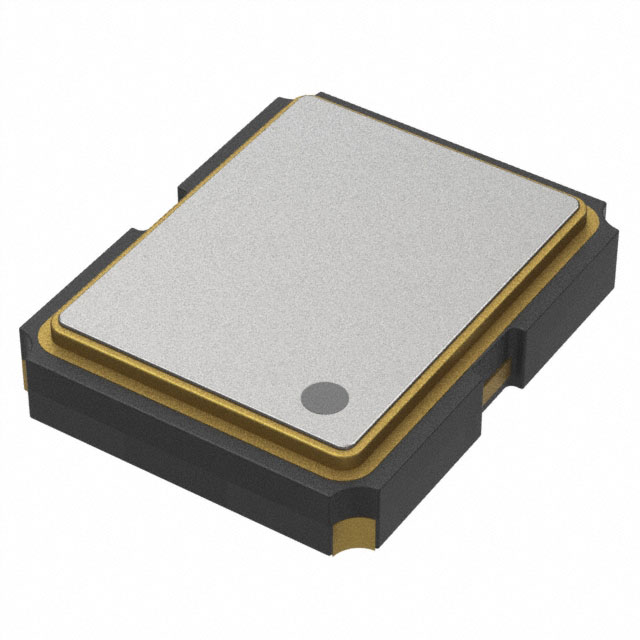

The CA20C2403GMR is a crystal oscillator (XO) manufactured by CTS-Frequency Controls, operating at a nominal frequency of 24 MHz. It features HCMOS and TTL output logic levels and functions as a standard XO type. The device supports an enable/disable control function and operates on a single 1.8V supply voltage. Maximum supply current is specified at 15mA, with disabled current not exceeding 10µA. Frequency stability is rated at ±50ppm. The component is designed for surface mount installation in a 4-SMD, no-lead package with dimensions of 2.00mm x 1.60mm x 0.80mm. It meets AEC-Q200 qualification standards and operates within a temperature range of -40°C to 105°C.

Oscillators Feature Summary

• Supports enable/disable functionality for power management
• Qualified for automotive applications under AEC-Q200 standards
• Provides HCMOS and TTL compatible output signals
• Compact surface-mount design suitable for space-constrained layouts

Oscillators Applications

• Automotive clock signal generation
• Industrial system timing references
• Embedded controller clock sources
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific suffix GMR against official datasheets to confirm tape and reel packaging requirements. Confirm that the 1.8V supply voltage aligns with target circuit designs. Ensure thermal management accounts for the -40°C to 105°C operational range. Cross-reference the AEC-Q200 grade if automotive reliability is required. Validate footprint compatibility with the 4-SMD 2x1.6mm outline before finalizing procurement.

Oscillators Selection Notes

Select this model when a 24 MHz reference with ±50ppm stability is required for 1.8V logic systems. Consider the enable pin utility for power-sensitive designs. Compare against other CA20 series variants if different frequencies or package sizes are needed. Verify that the HCMOS/TTL output swing matches downstream input thresholds. Ensure the industrial temperature range covers the intended environmental conditions.

Oscillators Part Context

This component belongs to the CA20 series of automotive and industrial clock oscillators from CTS-Frequency Controls. The series offers various frequencies and packages while maintaining consistent electrical characteristics and qualification standards. The CA20C2403GMR specifically addresses the need for precise timing in compact automotive and industrial electronics requiring low-voltage operation.

Oscillators Replacement Considerations

CA20C2403HMR is listed as a parameter-equivalent alternative.
