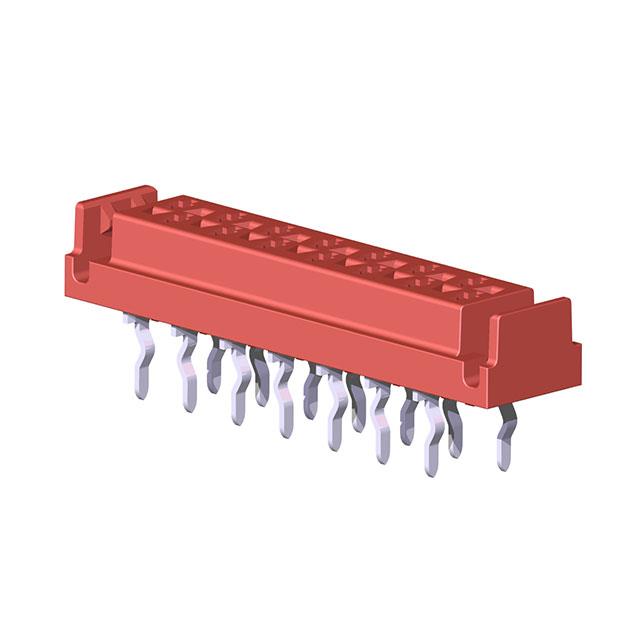

CA3204H130L

CA3204H130L is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is 1.27MM (.050) RIGHT ANGLE DIP TY. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for CA3204H130L

• Description：1.27MM (.050) RIGHT ANGLE DIP TY
• Series：CA32
• Mfr：Cvilux USA
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：4
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.059" (1.50mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Press-Fit, Solder
• Fastening Type：Latch Lock
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Red
• Insulation Height：0.197" (5.00mm)
• Contact Length - Post：0.122" (3.10mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1.5A
• Voltage Rating：230VAC/DC

Headers, Receptacles, Female Sockets datasheet and documents for CA3204H130L
