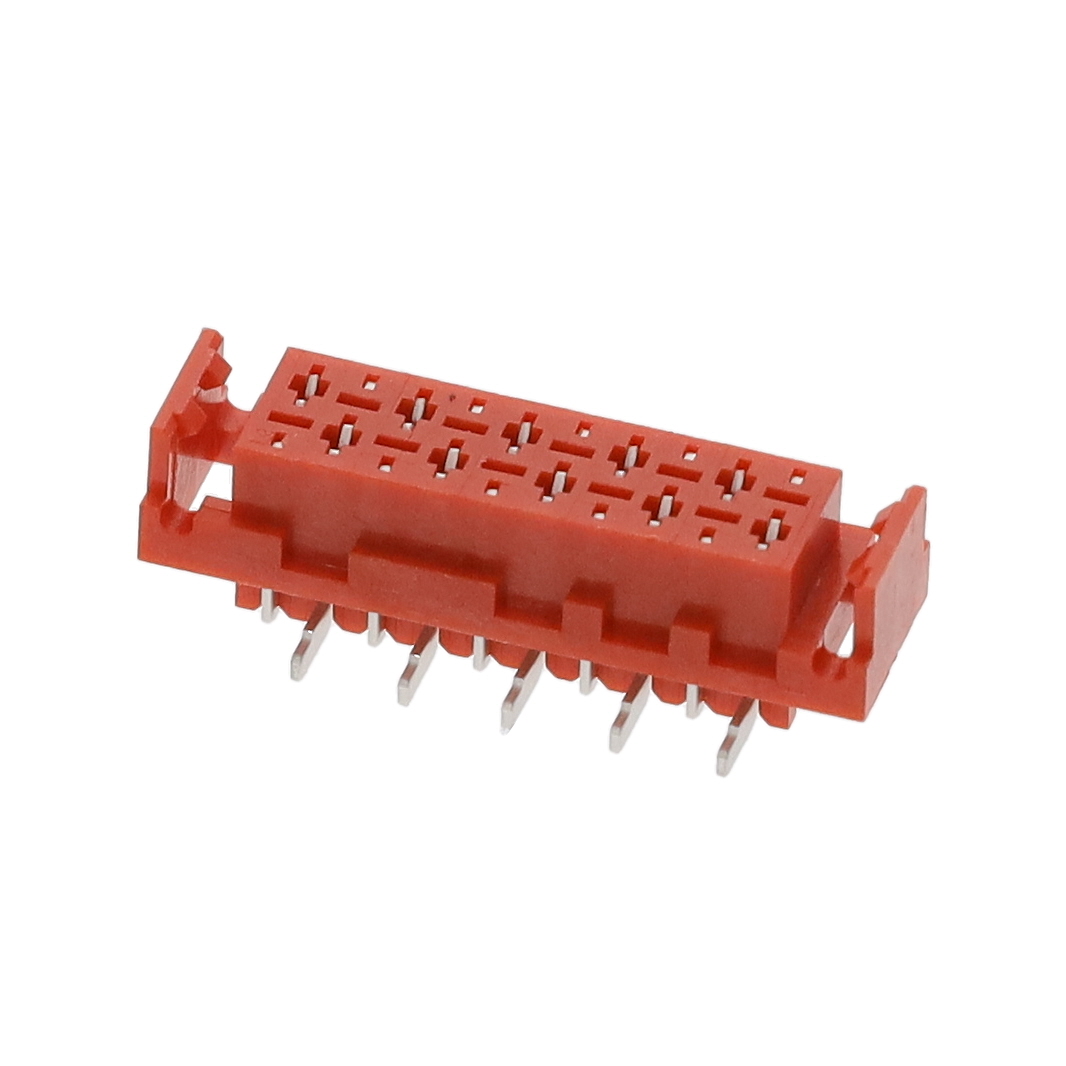

CA3210M130L

CA3210M130L is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Cvilux USA. Its product description is 1.27MM (.050") FEMALE TOP ENTRY. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for CA3210M130L

• Description：1.27MM (.050") FEMALE TOP ENTRY
• Series：CA32
• Mfr：Cvilux USA
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：10
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Lock
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Red
• Insulation Height：0.207" (5.26mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Pick and Place
• Current Rating (Amps)：1.5A
• Voltage Rating：230VAC/DC
