CA3506H1100-NH

Headers, Male Pins Overview

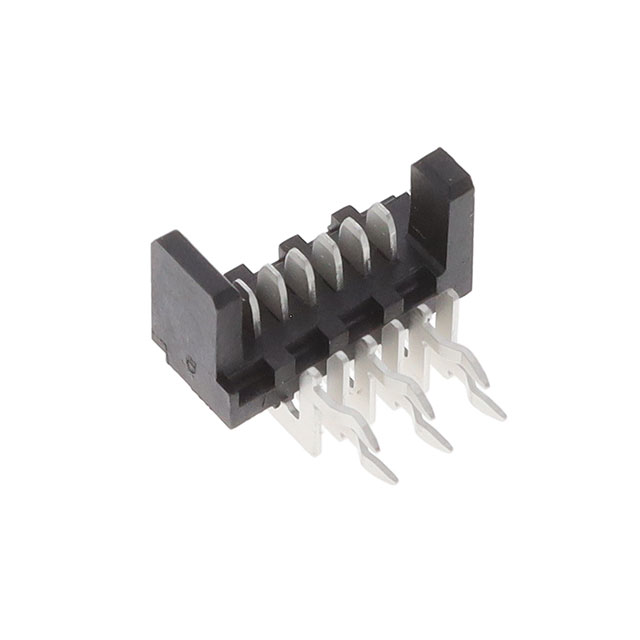

The CA3506H1100-NH is a male header connector from the Cvilux CA35 series, designed for right-angle through-hole mounting. It features a single row with six positions and a 1.27mm (0.050 inch) pitch. The contacts are made of brass with tin plating, while the insulation utilizes glass-filled polyamide (PA6T). Rated for operation between -40°C and 105°C, this component ensures reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle PCB mounting configuration for space-efficient board layout
• Through-hole termination method ensuring secure mechanical fixation
• Tin-plated brass contacts providing corrosion resistance and conductivity

Headers, Male Pins Applications

• Consumer electronics internal interconnections
• Compact circuit board assembly
• Electronic device signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number against official Cvilux datasheets to confirm pin count and orientation. Ensure compatibility with mating receptacles regarding pitch and contact finish. Check current availability status as lead times may vary due to order volume. Confirm packaging details such as tube quantities prior to ordering.

Headers, Male Pins Selection Notes

Select this connector when a low-profile, right-angle male header is required for dense PCB layouts. The 1.27mm pitch suits fine-pitch applications. Verify that the operating temperature range meets environmental requirements. Ensure the through-hole footprint matches the target PCB design constraints.

Headers, Male Pins Part Context

This component belongs to the CA35 Micro-MaTch series by Cvilux USA. The series focuses on compact rectangular connectors for consumer electronics. The CA3506H1100-NH specifically denotes a 6-position male header variant within this family, sharing common dimensional standards with other pitches in the line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27mm pitch, 6-position count, right-angle orientation, and through-hole termination. Verify identical contact material and insulation ratings. Cross-reference with other manufacturers offering equivalent Micro-MaTch style headers.
