CA3510H1100-NH

Headers, Male Pins Overview

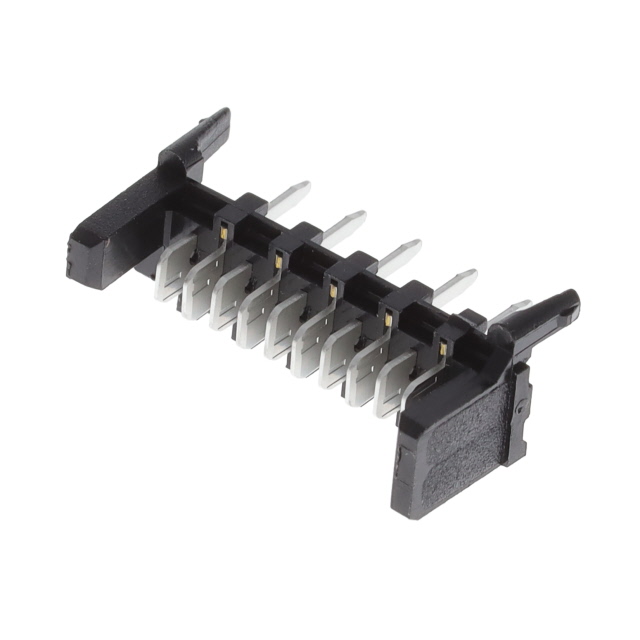

The CA3510H1100-NH is a Micro-MaTch series connector header manufactured by Cvilux USA. It features 10 positions with a 0.050 inch (1.27mm) pitch. The component utilizes through-hole termination and right-angle mounting for surface integration. Designed for reliable signal transmission, it supports standard PCB assembly processes.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration
• Micro-MaTch series design for compact layouts
• 10-position contact array

Headers, Male Pins Applications

• Consumer electronics interconnects
• IT and communication equipment
• Entertainment industry hardware

Headers, Male Pins Procurement Notes

Verify the specific part number CA3510H1100-NH against official Cvilux documentation to confirm pin count and orientation. Ensure compatibility with mating sockets in the target assembly. Check for halogen-free housing requirements if applicable to your project specifications.

Headers, Male Pins Selection Notes

Select this component when a right-angle through-hole header is required for 1.27mm pitch applications. Consider the Micro-MaTch series benefits for space-constrained designs. Validate mechanical fit within the enclosure before finalizing the bill of materials.

Headers, Male Pins Part Context

This connector belongs to the Micro-MaTch family produced by Cvilux USA, a manufacturer established in 1990 specializing in electronic connectors and FFC cables. The brand serves consumer electronics and IT sectors globally.

Headers, Male Pins Replacement Considerations

Cross-reference with other 10-position, 1.27mm pitch right-angle headers from alternative manufacturers. Verify that mating socket dimensions and current ratings match the original design requirements.
