CA50C2507HNT

Oscillators Overview

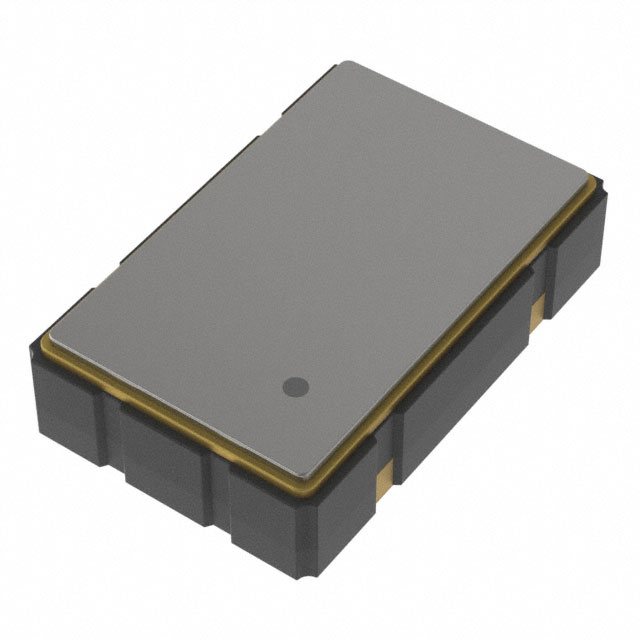

The CA50C2507HNT is a crystal oscillator manufactured by CTS-Frequency Controls, operating at a frequency of 25.0000 MHz. It features HCMOS and TTL output types with a supply voltage of 2.5V. The device supports enable/disable functionality and offers a frequency stability of ±100ppm. It operates within a temperature range of -40°C to 125°C and consumes a maximum supply current of 30mA. The component is housed in a 4-SMD, no-lead package measuring 5.00mm x 3.20mm x 1.30mm.

Oscillators Feature Summary

• Supports enable and disable control functions for power management
• Delivers HCMOS and TTL compatible output signals
• Complies with AEC-Q200 automotive qualification standards

Oscillators Applications

• Automotive clock signal generation
• Industrial timing circuits
• Embedded system clock sources

Oscillators Procurement Notes

Verify the specific suffix HNT against official datasheets to confirm the exact frequency stability and temperature grade, as these parameters vary across the CA50 series. Ensure the required operating temperature range aligns with the -40°C to 125°C specification documented for this variant. Cross-reference the package dimensions and pinout with the target PCB layout to guarantee mechanical compatibility during integration.

Oscillators Selection Notes

Select this component when a 25 MHz clock source with HCMOS/TTL outputs is required for automotive or industrial environments. Consider the ±100ppm stability requirement and the 2.5V supply constraint. Evaluate the need for enable/disable functionality and verify that the 4-SMD footprint fits the design constraints compared to other CA50 variants.

Oscillators Part Context

This part belongs to the CA50 series of surface-mount crystal oscillators designed for automotive and industrial applications. The series provides various frequencies and stability options within a compact 5.0mm x 3.2mm package. Components in this family are qualified under AEC-Q200 standards, ensuring reliability in demanding thermal and electrical conditions typical of modern electronic systems.

Oscillators Replacement Considerations

CA50C2507NNT is listed as a parameter-equivalent alternative.
