CA70C33E4INT

Oscillators Overview

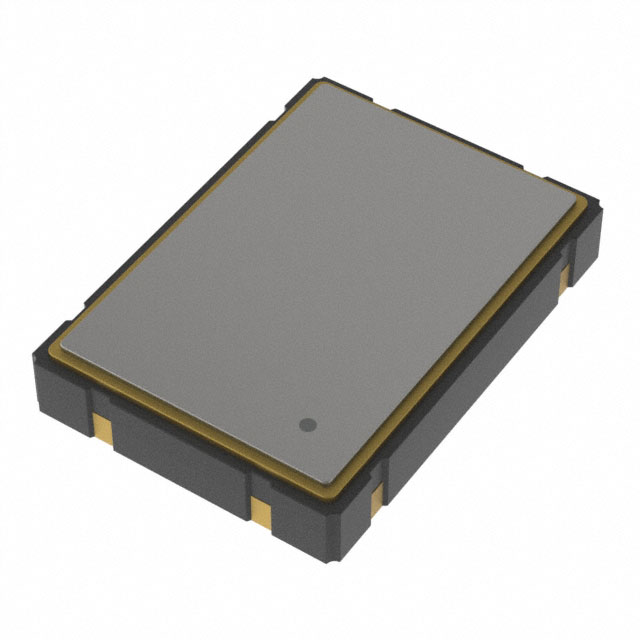

The CA70C33E4INT is a standard crystal oscillator (XO) manufactured by CTS-Frequency Controls. It operates at a frequency of 33.333 MHz with HCMOS and TTL output levels. The device requires a supply voltage of 2.5V and features an enable/disable function, drawing a maximum current of 30mA when active and 10µA in disable mode. Frequency stability is rated at ±30ppm. It supports an operating temperature range of -40°C to 85°C and meets AEC-Q200 automotive grade standards. The component is housed in a 4-SMD, no-lead package with dimensions of 7.00mm x 5.00mm x 1.40mm.

Oscillators Feature Summary

• Features an enable/disable control function for power management.

Oscillators Applications

• Automotive clock signal generation

Oscillators Procurement Notes

Verify the specific suffix INT against the manufacturer's official datasheet to confirm pinout compatibility and electrical characteristics. Ensure the selected variant matches the required supply voltage and output logic levels for the target circuit design before finalizing procurement.

Oscillators Selection Notes

Select this component when a 33.333 MHz standard XO with HCMOS/TTL outputs is required. Consider the 2.5V supply constraint and the ±30ppm stability requirement. Verify that the 4-SMD footprint fits the PCB layout and that the -40°C to 85°C temperature range suits the application environment.

Oscillators Part Context

This part belongs to the CA70 series of automotive and industrial clock oscillators from CTS-Frequency Controls. The series is characterized by its small 7x5mm surface-mount package and compliance with AEC-Q200 standards, making it suitable for demanding environments requiring reliable timing signals.

Oscillators Replacement Considerations

CA70C33E4GNT is listed as a parameter equivalent substitute by the manufacturer.
