CAA-11.0592-18-3050-R

Crystals Overview

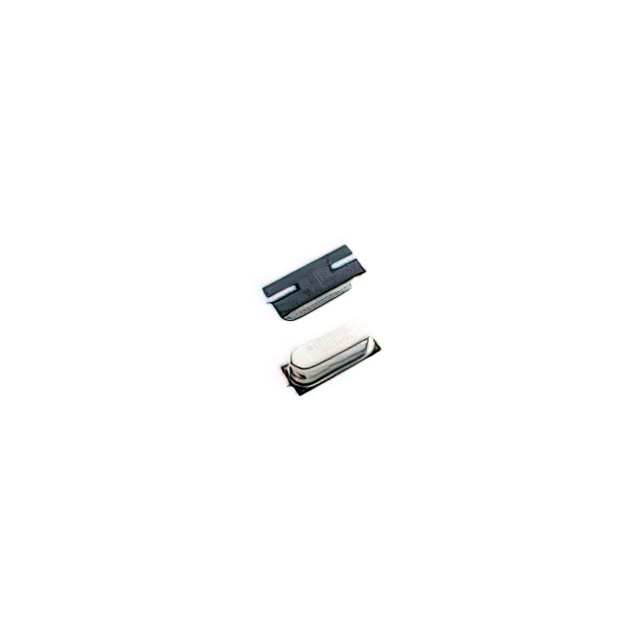

The CAA-11.0592-18-3050-R is a surface-mount crystal oscillator manufactured by Aker Technology Corp. It operates at a nominal frequency of 11.0592 MHz with a load capacitance of 18 pF. The component features a frequency tolerance of ±30 ppm and stability of ±50 ppm. It utilizes an HC-49/US package style adapted for SMD mounting, specifically a 2-SMD, Flat Lead configuration. The device supports an operating temperature range from -20°C to +70°C and has a series resistance of 50 Ohms. This active component is available in Cut Tape and Tape & Reel packaging formats.

Crystals Feature Summary

• Surface-mount design compatible with automated assembly processes
• Stable frequency generation for clock signal applications
• Wide operating temperature range for industrial environments

Crystals Applications

• Microcontroller clock sources
• Communication interface timing circuits
• Digital logic synchronization

Crystals Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure correct frequency and tolerance specifications. Confirm that the package type matches the required footprint for PCB layout. Check current product status to confirm availability and lifecycle stage before finalizing procurement plans.

Crystals Selection Notes

Select this component when a precise 11.0592 MHz reference is required for serial communication baud rates. Ensure the load capacitance matches the circuit design requirements. Consider the operating temperature range if the application involves environmental extremes beyond standard commercial limits.

Crystals Part Context

This part belongs to the CAA series of crystals from Aker Technology Corp. The series offers various frequency options tailored for general-purpose electronic applications. The specific model provides a common frequency used in UART and RS-232 interfaces.

Crystals Replacement Considerations

Direct substitutes must match the 11.0592 MHz frequency, 18 pF load capacitance, and 2-SMD flat lead package. Verify equivalent electrical parameters such as tolerance and stability ratings before substitution.
