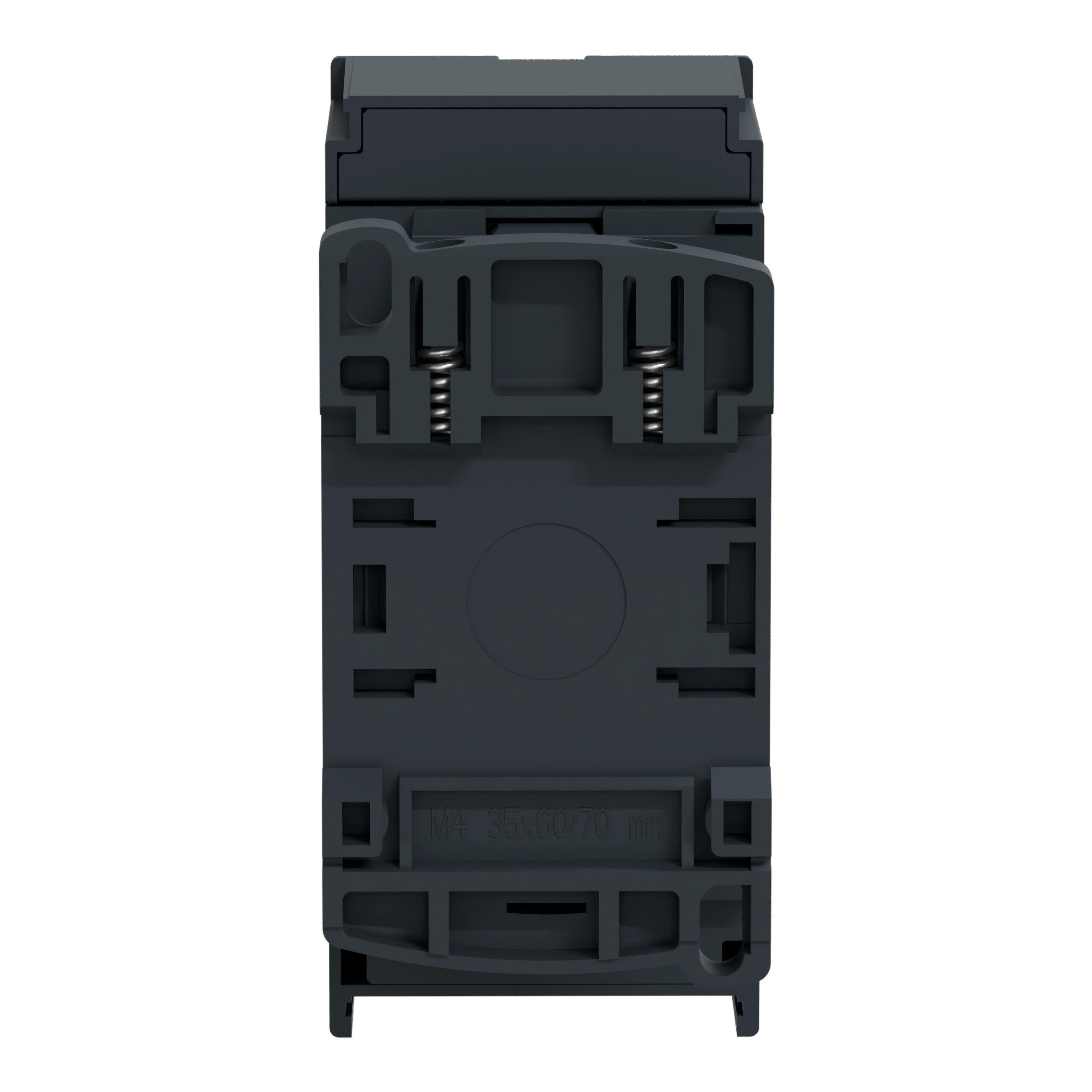

Power Relays, Over 2 Amps CAD503P7 product image

CAD503P7

$94.19

Description：RELAY GEN PURPOSE 5PST 10A 230V
Series：TeSys
Mfr：Schneider Electric
Package：Box

SKU:2721285aa474 Category: Power Relays, Over 2 Amps Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

CAD503P7 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is RELAY GEN PURPOSE 5PST 10A 230V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for CAD503P7

Description：RELAY GEN PURPOSE 5PST 10A 230V
Series：TeSys
Mfr：Schneider Electric
Package：Box
Mounting Type：DIN Rail
Coil Voltage：230VAC
Contact Form：5PST-NO (5 Form A)
Contact Rating (Current)：10:00 AM
Switching Voltage：690VAC - Max
Load - Max Switching：-
Coil Current：-
Coil Type：Non Latching
Features：-
Termination Style：Spring Terminal
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：195.5 VAC
Must Release Voltage：69 VAC
Operating Temperature：-40°C ~ 70°C
Contact Material：-
Approval Agency：CB, CCC, CE, CSA, EAC, UKCA, UL
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：22 ms
Release Time：12 ms

Power Relays, Over 2 Amps datasheet and documents for CAD503P7

CAD503P7
