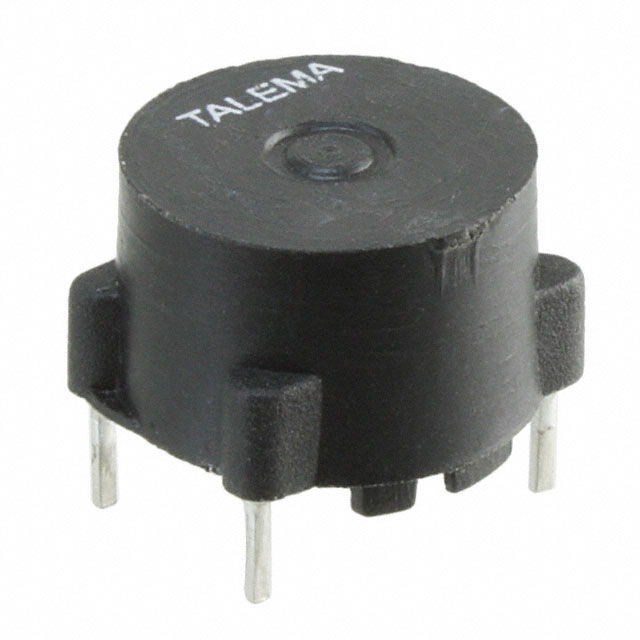

CAF-1.1-6.8

$1.60

Description：CMC 6.8MH 1.1A 2LN TH
Series：CA
Mfr：Talema Group LLC
Package：Tray

SKU:64d4dbe80410 Category: Common Mode Chokes Brand: Talema Group LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 6.8MH 1.1A 2LN TH
Series：CA
Mfr：Talema Group LLC
Package：Tray
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：1.1A
DC Resistance (DCR) (Max)：342mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.689" L x 0.669" W (17.50mm x 17.00mm)
Height (Max)：0.492" (12.50mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：6.8 mH @ 10 kHz
Impedance @ Frequency：-

Download product information

CAF-1.1-6.8

Overview

The Talema Group LLC CAF-1.1-6.8 is a common mode toroidal choke designed for through-hole mounting. It features an inductance of 6.8 mH measured at 10 kHz and supports a current rating of 1.1 A. The component has a maximum DC resistance of 342 mOhm and an AC voltage rating of 250 V. It operates within a temperature range of -40°C to 125°C. This two-line filter is constructed as a standard magnetic component suitable for EMI suppression applications.

Feature Summary

Two-line common mode filtering capability
Through-hole mounting configuration
Toroidal core construction

Applications

EMI suppression in power supply circuits
Signal line noise filtering
General electronic equipment interference reduction

Procurement Notes

Verify the specific datasheet version from Talema Group LLC or authorized distributors to confirm RoHS compliance status and exact physical dimensions. Ensure the selected component matches the required 1.1 A current rating and 6.8 mH inductance specifications for your circuit design. Cross-reference the DCR value of 342 mOhm against your thermal management requirements.

Selection Notes

Select this component when a through-hole common mode choke with 6.8 mH inductance is required for 1.1 A applications. Consider the 250 V AC rating and -40°C to 125°C operating temperature range for environmental compatibility. Verify that the physical size fits the PCB layout constraints and that the toroidal form factor meets mechanical clearance needs.

Part Context

Talema Group LLC manufactures this component as part of their standard magnetic components catalog, which includes transformers and chokes. The company designs custom and off-the-shelf magnetic products for global markets. This specific model falls under their EMI suppression and power supply magnetics categories, leveraging their expertise in toroidal transformer and inductor manufacturing since 1975.
