Product Detailed Parameters
- Description：CMC 27MH 800MA 2LN TH
- Series：CA
- Mfr：Talema Group LLC
- Package：Tray
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：800mA
- DC Resistance (DCR) (Max)：674mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.906" L x 0.610" W (23.00mm x 15.50mm)
- Height (Max)：0.984" (25.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：27 mH @ 10 kHz
- Impedance @ Frequency：-
Download product information
Overview

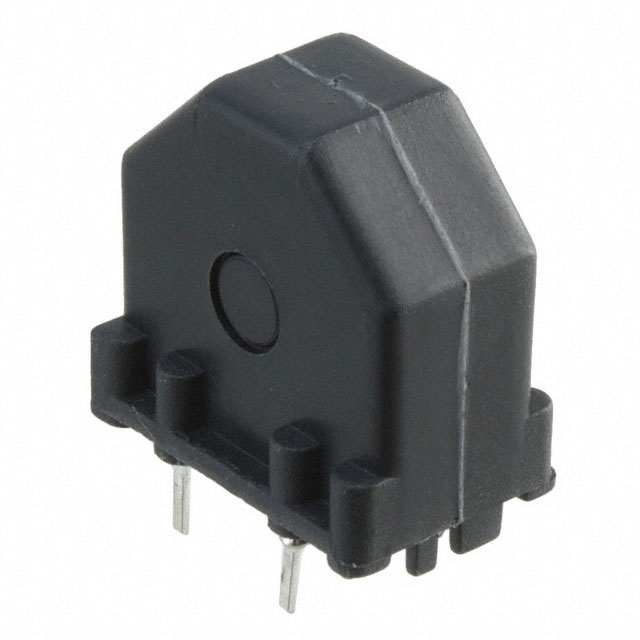

The CAV-0.8-27 is a common mode choke manufactured by Talema Group LLC, designed for through-hole mounting. It features a toroidal core construction with two lines and an inductance of 27 mH at 10 kHz. The component supports a maximum current of 800 mA and has a DC resistance of 674 mOhm. Physical dimensions include a height of approximately 20.00 mm. It operates within a temperature range of -40°C to +125°C and complies with RoHS3 standards.
Feature Summary
- Toroidal core design for efficient magnetic containment
- Through-hole termination style for secure board mounting
- Wide operating temperature range suitable for demanding environments
Applications
- Common mode noise suppression in power supply circuits
- EMI filtering in electronic equipment input stages
- Signal integrity protection in data transmission lines
Procurement Notes
Verify the specific inductance value of 27 mH at 10 kHz and the 800 mA current rating against the official datasheet before integration. Confirm that the through-hole package dimensions align with the PCB footprint requirements. Ensure compliance with RoHS3 regulations if required by the end product specifications. Cross-reference the manufacturer part number CAV-0.8-27 to avoid confusion with similar series components.
Selection Notes
Select this component when high inductance is required for low-frequency common mode noise reduction. The 800 mA current rating suits moderate power applications. Consider the physical height constraint of 20.00 mm for enclosure clearance. The wide temperature range allows use in industrial or automotive contexts where thermal stability is critical. Verify compatibility with automated assembly processes due to the through-hole format.
Part Context
This component belongs to the CAV series of common mode chokes from Talema Group LLC. These devices are engineered for general-purpose EMI suppression. The series offers various inductance and current combinations to fit different circuit requirements. The toroidal geometry provides compact size relative to performance. This specific model emphasizes high inductance for effective noise attenuation.
FAQ
What is the inductance tolerance for the CAV-0.8-27?
The provided documentation specifies the nominal inductance as 27 mH at 10 kHz but does not explicitly state the manufacturing tolerance percentage.
Is the CAV-0.8-27 suitable for surface mount applications?
No, the CAV-0.8-27 is specified for through-hole mounting only.
