CB-150.000MBE-T

Oscillators Overview

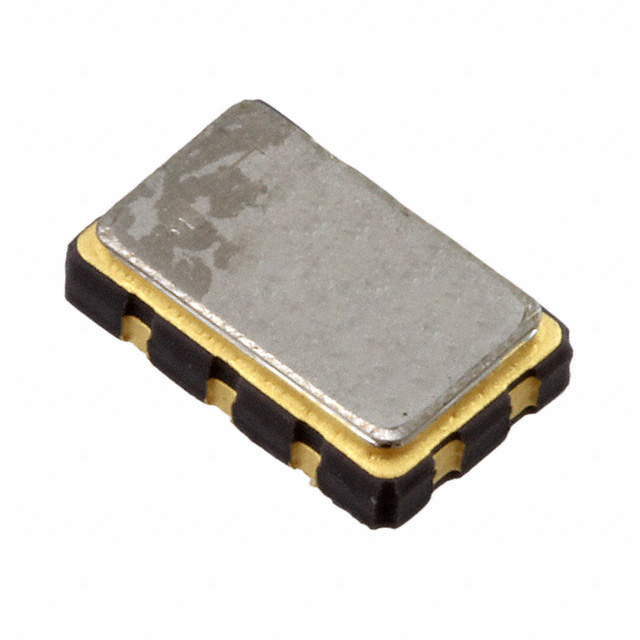

The CB-150.000MBE-T is a standard crystal oscillator manufactured by TXC Corporation, operating at a frequency of 150 MHz with a stability of ±50 ppm. It functions within a supply voltage range of 2.5 V to 3.3 V and utilizes an LVPECL output format. The component supports enable/disable functionality and is housed in a compact 6-SMD, no-lead package measuring 5.00 mm x 3.20 mm x 1.40 mm. Designed for industrial environments, it operates reliably between -40°C and +85°C. The device is RoHS compliant and classified under the CB series.

Oscillators Feature Summary

• Supports active enable and disable control for power management
• Provides low-voltage positive emitter-coupled logic (LVPECL) output signals
• Operates within a wide industrial temperature range for reliability

Oscillators Applications

• High-speed digital signal processing systems requiring precise clocking
• Telecommunications equipment utilizing LVPECL interfaces
• Industrial control systems operating in extreme temperature environments

Oscillators Procurement Notes

Verify current availability status as the component may be discontinued or subject to supply constraints. Confirm that the specific ordering suffix matches the required voltage and output configuration. Ensure compliance with RoHS directives for environmental standards. Check moisture sensitivity level requirements during storage and handling procedures before integration into assembly lines.

Oscillators Selection Notes

Select this model when LVPECL compatibility is mandatory for the target circuit design. Consider the 150 MHz frequency and ±50 ppm stability against system jitter requirements. Evaluate the 6-SMD package dimensions against available PCB real estate. Verify that the 3.3V supply capability aligns with the host system's power distribution network.

Oscillators Part Context

This oscillator belongs to the CB series from TXC Corporation, which specializes in surface-mount crystal oscillators. The series is designed for applications demanding high frequency stability and compact form factors. The CB-150.000MBE-T variant specifically addresses needs for LVPECL outputs in dense electronic assemblies.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
